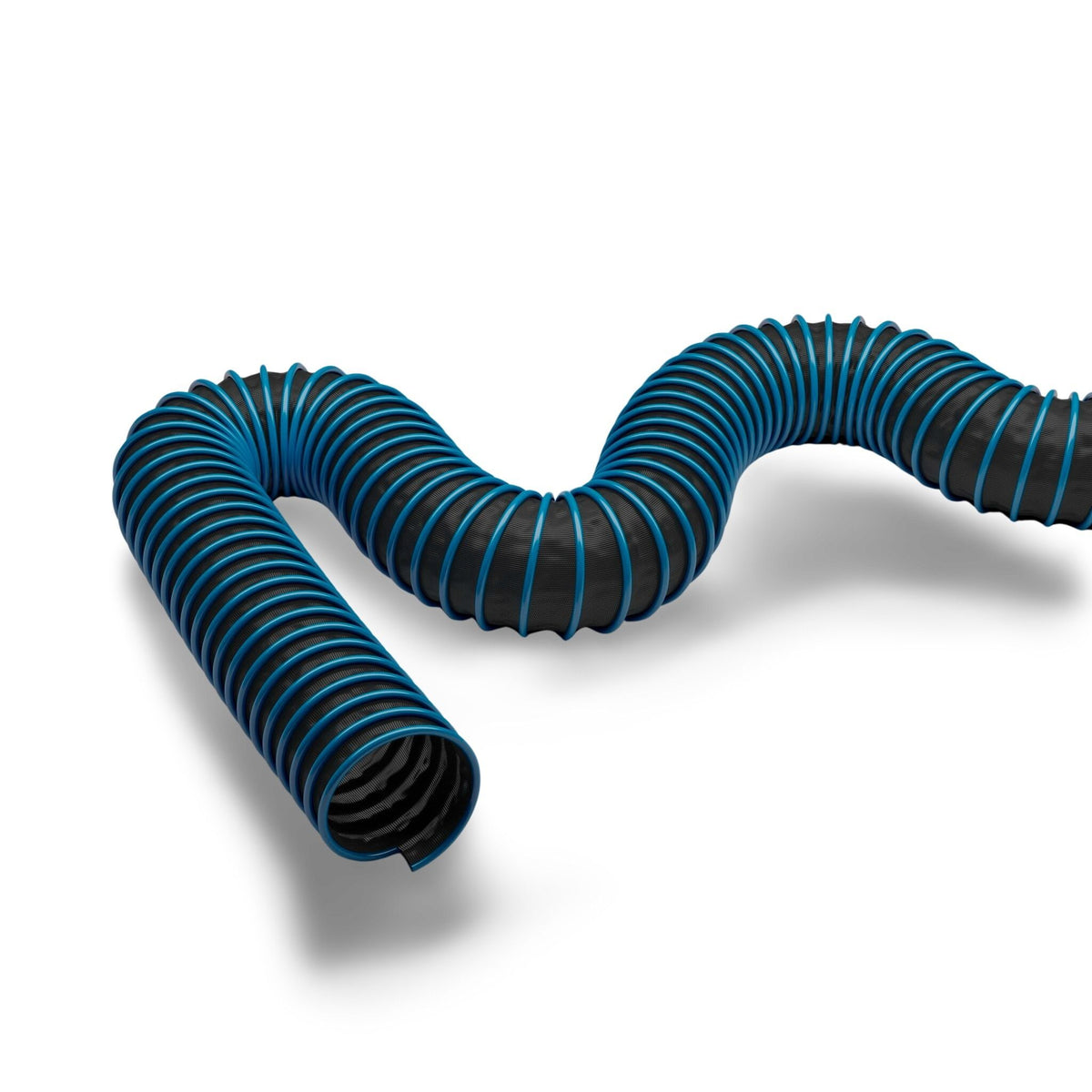

The Carflex 200 is a exhaust gas hose for exhaust fumes/gases up to 200 °c. It is very flexible and light in weight, moderately pressure resistant, with a black hose wall, blue scuff protection profile wall.
Constructed as a spiral hose with clamping profile with a polyester fabric wall, it operates from 0 °C to +200 °C (peaks to 200 °C flue gas temperature, for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% related to the maximum specified temperature)). Available in bore sizes from 63–200 mm, in 10 m, 15 m lengths.
| Construction & material | |
|---|---|
| Type of construction | spiral hose with clamping profile |
| Design of the helix | metal band, formed as a clamping profile |
| Material of the helix | steel strip, hot-dip galvanised |
| Design of the external spiral | covered with a plastic profile to protect against scratches |
| Execution of the wall | coated, coating of neoprene |
| Material of the wall | polyester fabric |
| Properties | |
| Chemical Properties | very good resistance to chemicals |
| Mechanical Properties | compressible approx. 1:5, resistance to vibrations and mechanical-dynamic load (cycle operation) |
| Flexibility | very flexible |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | black hose wall, blue scuff protection profile |
| Operating temperature | |
| Temperature Range | 0 to 200 °C |
| short-term maximum temperature | peaks to 200 °C flue gas temperature, for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% related to the maximum specified temperature) |
| proper use | the figures apply to flue gas temperatures when the flue gas funnel is used correctly with a minimum of 25% fresh air supply at the maximum specified temperature |
Automotive, Ventilation & Air-conditioning.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 63 | — | 38.0 | — | — | 0.23 |
| 75 | — | 46.0 | — | — | 0.18 |
| 80 | — | 48.0 | — | — | 0.15 |
| 100 | — | 60.0 | — | — | 0.1 |
| 125 | — | 75.0 | — | — | 0.06 |
| 150 | — | 90.0 | — | — | 0.04 |
| 200 | — | 120.0 | — | — | 0.03 |
