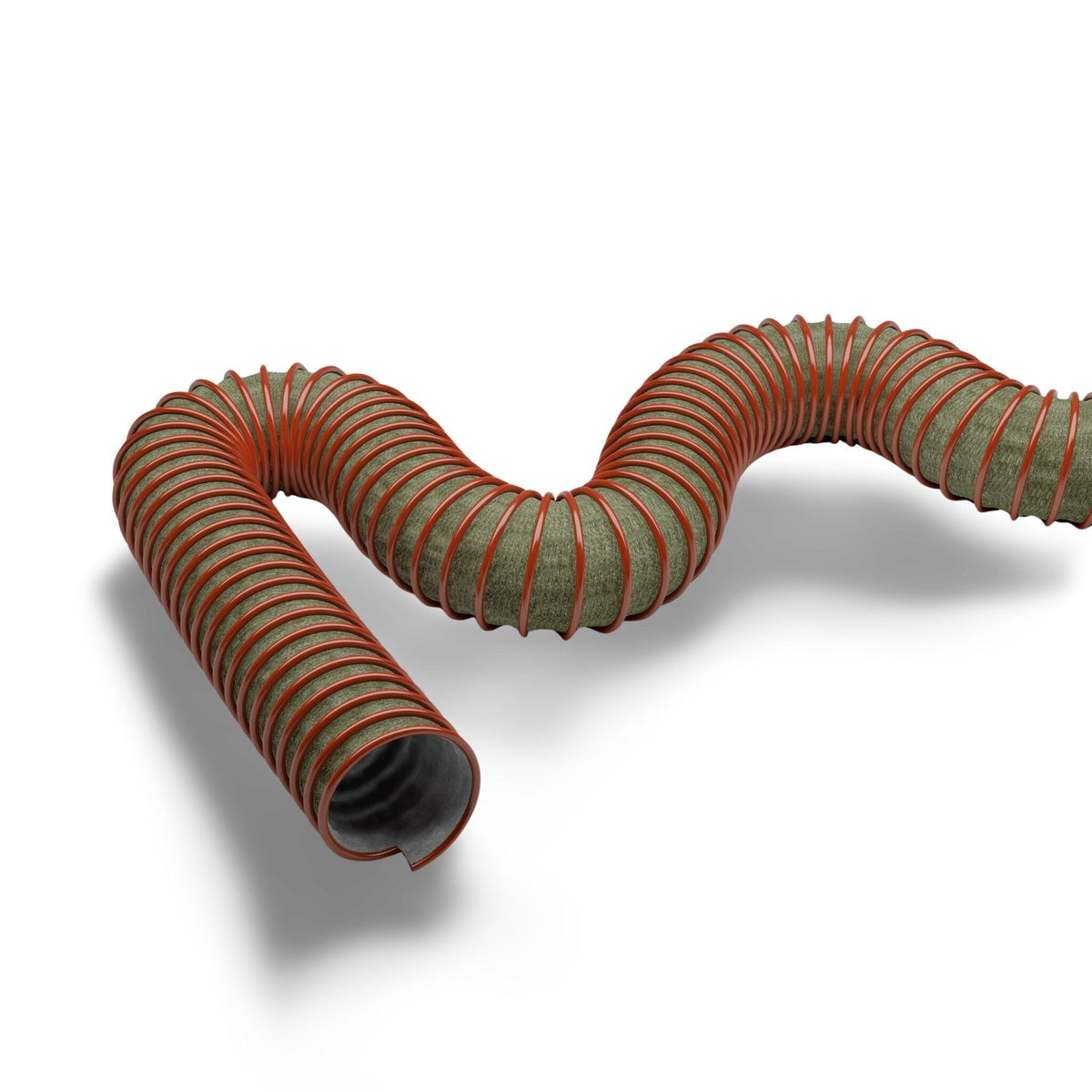

The Carflex 300 is a exhaust gas hose for exhaust fumes up to 300 °c. It is very flexible and light in weight, moderately pressure resistant / pressure resistance depending on design, not recommended for overpressure applications, with a inside silver-grey, outside green-grey, scuff protection profile red wall.
Constructed as a spiral hose with clamping profile, it operates from -60 °C to +300 °C (peaks to 300 °C flue gas temperature, for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% based on the maximum specified temperature)). Available in bore sizes from 63–150 mm, in 10 m, 15 m lengths.
Wall material: flame retardant.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | spiral hose with clamping profile |
| Design of the helix | metal band, formed as a clamping profile |
| Material of the helix | steel strip, hot-dip galvanised |
| Design of the external spiral | covered with a plastic profile to protect against scratches |
| Properties | |
| Chemical Properties | good resistance to chemicals |
| Mechanical Properties | compressible approx. 1:5, resistance to vibrations and mechanical-dynamic load (cycle operation) |
| Flexibility | very flexible |
| Weight | light |
| Pressure Resistance | moderately pressure resistant, pressure resistance depending on design, not recommended for overpressure applications |
| Colour | inside silver-grey, outside green-grey, scuff protection profile red |
| Other | abrasion-resistant against soot particles from diesel exhaust gases |
| Operating temperature | |
| Temperature Range | -60 to 300 °C |
| short-term maximum temperature | peaks to 300 °C flue gas temperature, for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% based on the maximum specified temperature) |
| proper use | the specifications apply to exhaust gas temperatures when exhaust gas funnels are used correctly with a minimum of 50% fresh air supply at the maximum specified temperature |
Automotive, Ventilation & Air-conditioning.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 63 | — | 38.0 | — | — | 0.17 |
| 75 | — | 46.0 | — | — | 0.14 |
| 80 | — | 48.0 | — | — | 0.12 |
| 100 | — | 60.0 | — | — | 0.08 |
| 125 | — | 75.0 | — | — | 0.05 |
| 150 | — | 90.0 | — | — | 0.04 |
