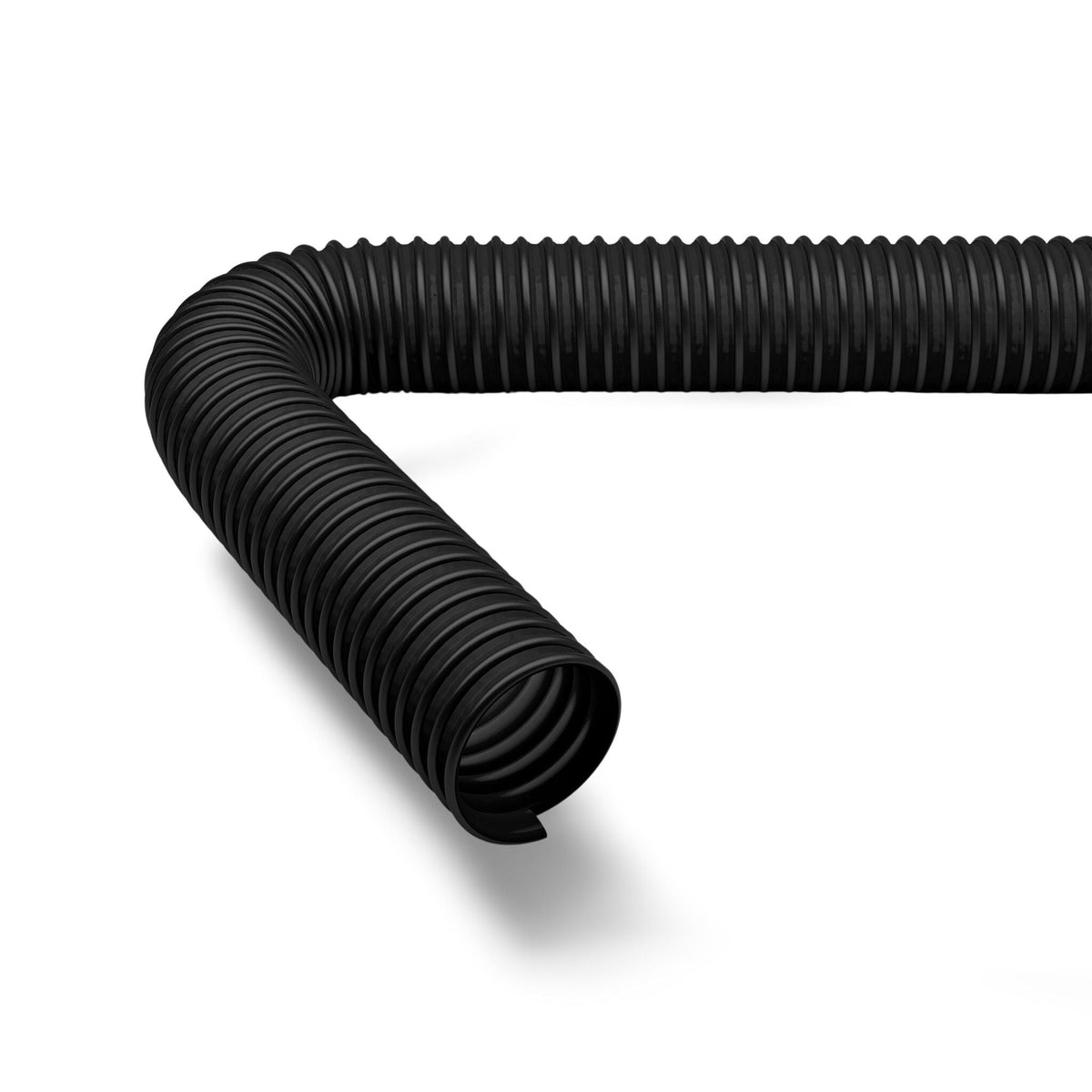

The Carflex Super is a exhaust hose for exhaust fume temperatures up to +200 °c, super lightweight, crush-resistant. It is very flexible, moderately pressure resistant, with a black wall.
Constructed as a fabric hose with attached support coil with a polyester fabric wall, it operates from 0 °C to +200 °C (peaks to 200 °C flue gas temperature, for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% related to the maximum specified temperature)). Available in bore sizes from 51–203 mm, in 5 m, 8 m, 10 m, 15 m lengths.
| Construction & material | |
|---|---|
| Type of construction | fabric hose with attached support coil |
| Execution of the wall | coated, coating of EPDM, overlapping welded design |
| Material of the wall | polyester fabric |
| Design of the profile coil | made of plastic |
| Properties | |
| Chemical Properties | good resistance to petrol, good resistance to solvents, good resistance to oil, good UV resistance, good ozone resistance |
| Mechanical Properties | excellent mechanical tensile strength and tear resistance |
| Flexibility | very flexible |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | black |
| Operating temperature | |
| Temperature Range | 0 to 200 °C |
| short-term maximum temperature | peaks to 200 °C flue gas temperature, for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% related to the maximum specified temperature) |
| proper use | the figures apply to flue gas temperatures when the flue gas funnel is used correctly with a minimum of 50% fresh air supply at the maximum specified temperature |
Automotive, Ventilation & Air-conditioning, Chemistry, Plastics.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 51 | — | 63.0 | — | — | 0.31 |
| 63 | — | 79.0 | — | — | 0.28 |
| 76 | — | 95.0 | — | — | 0.24 |
| 80 | — | 100.0 | — | — | 0.23 |
| 102 | — | 120.0 | — | — | 0.18 |
| 127 | — | 145.0 | — | — | 0.12 |
| 152 | — | 170.0 | — | — | 0.05 |
| 203 | — | 220.0 | — | — | 0.02 |
