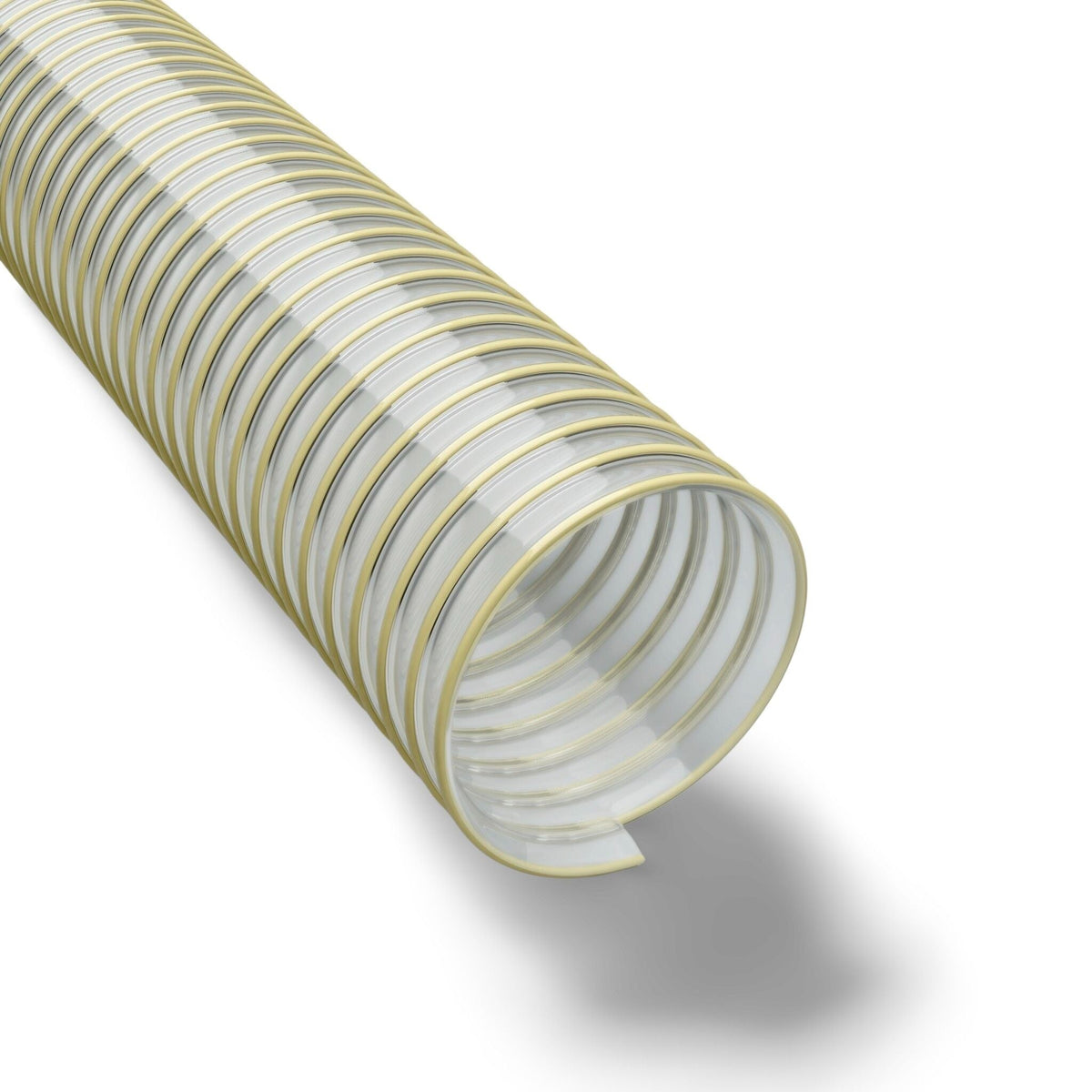

The Cargoflex is a PU suction hose & transport hose, extremely abrasion and vacuum resistant. It is moderately flexible and heavy in weight, very pressure resistant, with a transparent wall.
Constructed as a profile extruded hose with metal spiral with a polyester polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 102–254 mm, in 10 m, 15 m, 20 m lengths.
Wall material: material is more abrasion resistant than comparable polyurethane according to DIN ISO 4649.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | profile extruded hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of pure material, wall thickness between the spirals approx. 3.2 - 4.8 mm, depending on DN |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical Properties | microbe-resistant, halogen-free, good UV resistance, good ozone resistance, plasticiser-free |
| Mechanical Properties | excellent mechanical tensile strength and tear resistance |
| Flexibility | moderately flexible |
| Weight | heavy |
| Pressure Resistance | very pressure resistant |
| Colour | transparent |
| Other | high vacuum and good pressure resistance, longer service life |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Industry, Bulk & Construction, Chemistry, Food & Pharma, Plastics, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 102 | 117.0 | 300.0 | — | 3.15 | 0.87 |
| 127 | 143.0 | 375.0 | — | 2.55 | 0.87 |
| 152 | 168.0 | 450.0 | — | 2.25 | 0.82 |
| 203 | 222.0 | 600.0 | — | 1.65 | 0.66 |
| 254 | 275.0 | 750.0 | — | 1.35 | 0.51 |
