Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

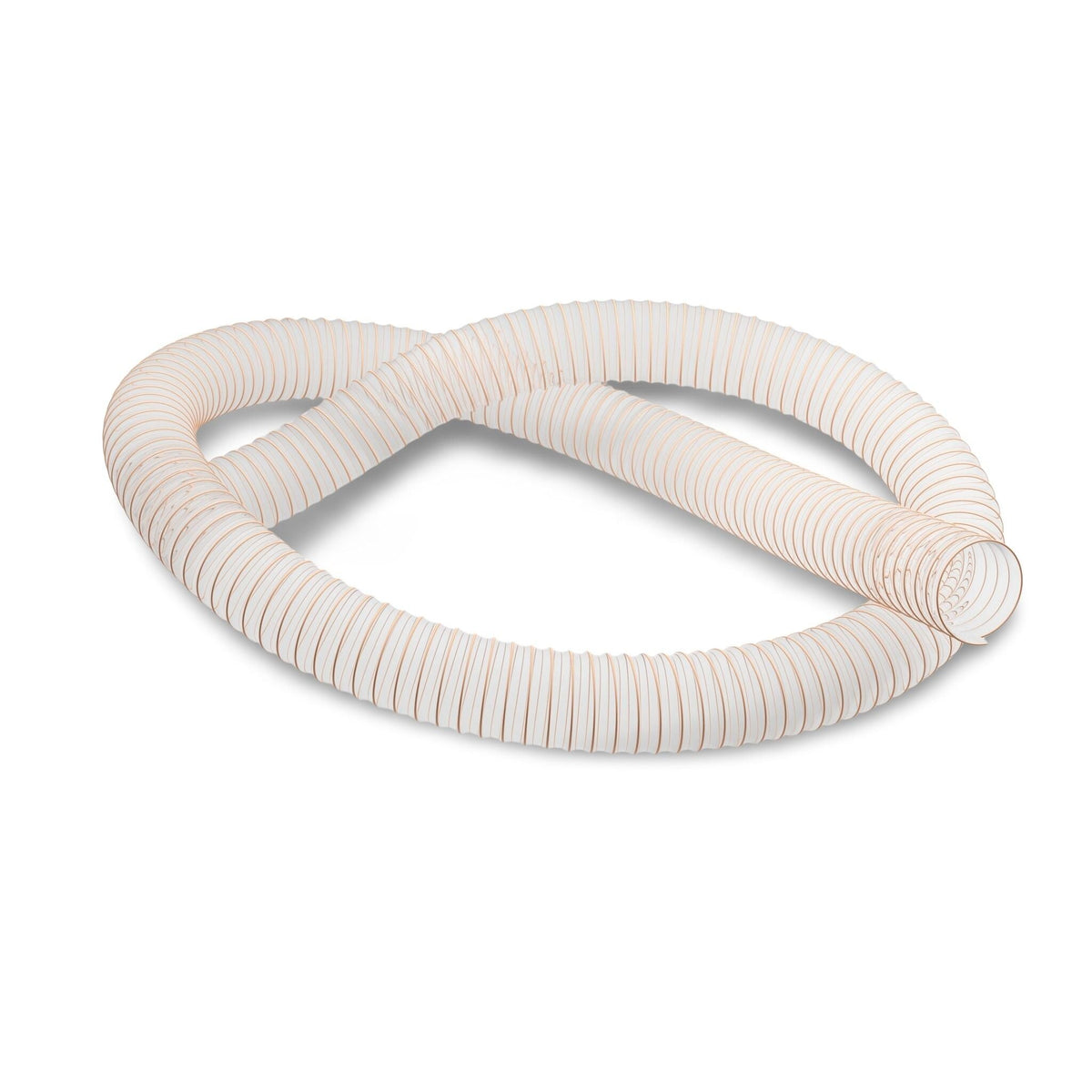

The Flamex B-F AE is a fDA PU flexible hose, lightweight, non-flammable, microbe-resistant. It is moderately pressure resistant.
Constructed as a film hose with metal spiral with a polyether polyurethane wall, it operates from 40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 38–300 mm, in 10 m, 15 m lengths.
Food-safe: manufactured to food-grade quality (FDA) and suitable for direct food contact. Conformity documentation available on request.
✓ Food-safe — manufactured to food-grade quality and suitable for direct food contact. Conformity documentation available on request.
Wall material: material complies with food regulations FDA 21 CFR § 177.2600 - 21 CFR § 178.2010.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | film hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of highly abrasion-resistant material, made of pure material, wall thickness between the spirals approx. 0.5 mm |
| Material of the wall | polyether polyurethane |
| Properties | |
| Chemical Properties | microbe-resistant |
| Flexibility | very flexible |
| Pressure Resistance | moderately pressure resistant |
| Operating temperature | |
| Temperature Range | 40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Wood.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 38 | — | — | — | — | — |
| 51 | — | — | — | — | — |
| 63 | — | — | — | — | — |
| 76 | 83.0 | 43.0 | — | 0.61 | 0.13 |
| 80 | 88.0 | 45.0 | — | 0.53 | 0.13 |
| 90 | — | — | — | — | — |
| 102 | 108.0 | 55.0 | — | 0.46 | 0.13 |
| 110 | 124.0 | 63.0 | — | 0.38 | 0.09 |
| 120 | 124.0 | 63.0 | — | 0.38 | 0.09 |
| 127 | 136.0 | 68.0 | — | 0.38 | 0.09 |
| 130 | 136.0 | 68.0 | — | 0.38 | 0.09 |
| 140 | — | — | — | — | — |
| 152 | 159.0 | 80.0 | — | 0.3 | 0.06 |
| 160 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 180 | 189.0 | 95.0 | — | 0.23 | 0.06 |
| 203 | 210.0 | 105.0 | — | 0.23 | 0.06 |
| 227 | 235.0 | 118.0 | — | 0.15 | 0.06 |
| 254 | 260.0 | 130.0 | — | 0.15 | 0.06 |
| 300 | — | — | — | — | — |
