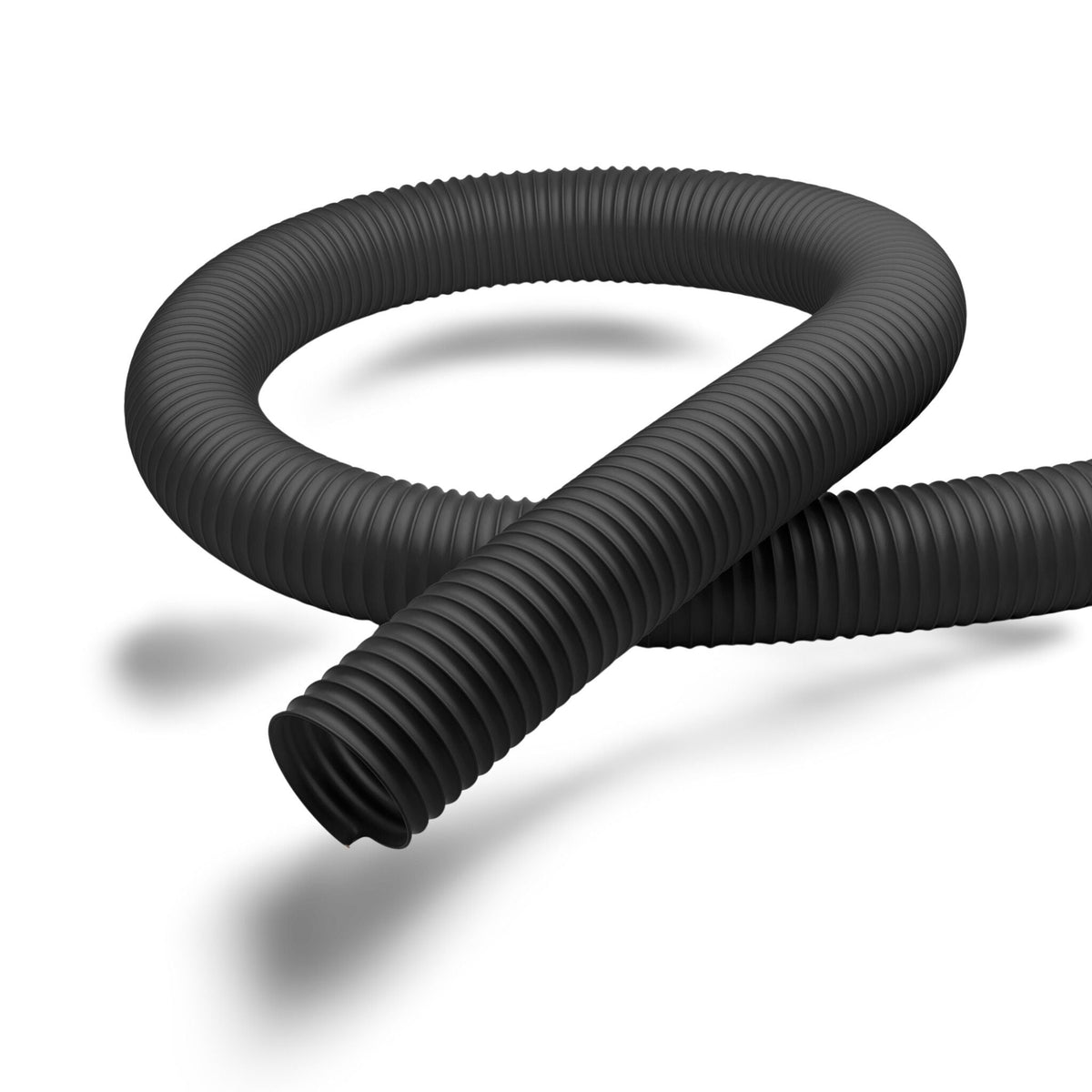

The Flamex B-F Black is a black light/medium duty polyurethane abrasion resistant ducting hose, PU, copper coated steel. It is very flexible, moderately pressure resistant.
Constructed as a film hose with metal spiral with a polyester polyurethane wall, it operates from 40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 51–203 mm, in 10 m, 15 m lengths.
| Construction & material | |
|---|---|
| Type of construction | film hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of highly abrasion-resistant material, made of pure material, wall thickness between the spirals approx. 0.5 mm |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical Properties | good resistance to oil |
| Flexibility | very flexible |
| Pressure Resistance | moderately pressure resistant |
| Operating temperature | |
| Temperature Range | 40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 51 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 76 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 80 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 90 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 102 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 110 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 115 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 120 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 127 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 130 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 140 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 152 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 160 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 180 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 203 | 169.0 | 85.0 | — | 0.3 | 0.06 |
