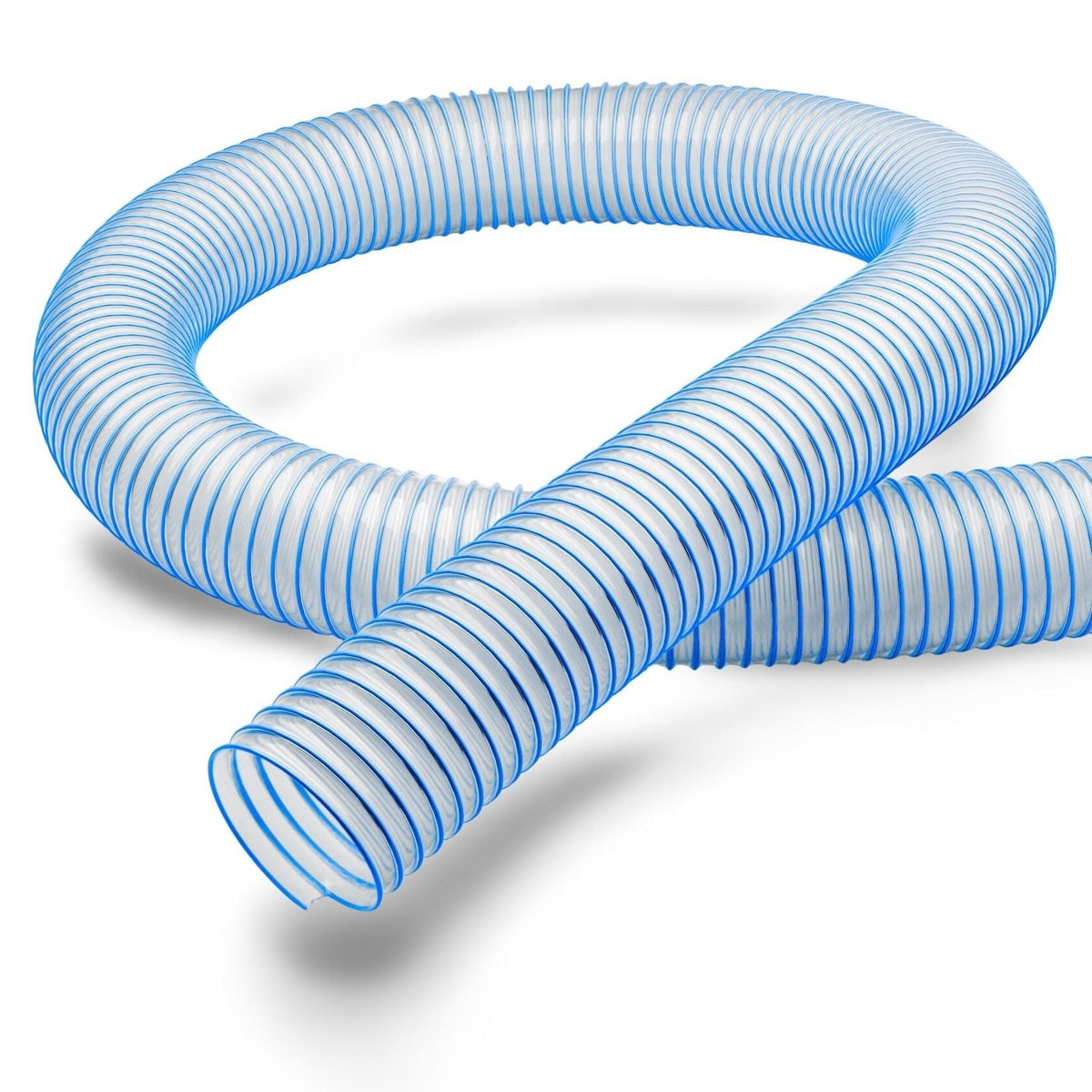

The Flamex B-F H Blue is a heavy-duty, flame-retardant polyurethane extraction hose — the tougher, high-vacuum choice for demanding wood chip and dust extraction. Flexible yet very pressure-resistant, its abrasion-resistant wall stands up to coarse chips, shavings and offcuts, and the bold blue finish looks the part on a workshop or production floor.
Built as a PU film hose with a metal spiral and a pure polyester-polyurethane wall (approx. 0.7 mm between the spirals), it runs from -40 °C to +90 °C (short peaks to 125 °C) and compresses roughly 1:3. Available in bore sizes from 38 mm to 400 mm in 10 m and 15 m coils.
Wall material: flame-retardant, highly abrasion-resistant polyester polyurethane.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | film hose with metal spiral |
| Spiral design | steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | highly abrasion-resistant pure material; wall thickness between the spirals approx. 0.7 mm |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical properties | good resistance to petrol, chemicals and oil; good UV and ozone resistance; halogen-free |
| Mechanical properties | compressible approx. 1:3, excellent tensile strength and tear resistance |
| Flexibility | flexible |
| Pressure resistance | very pressure resistant |
| Colour | blue |
| Operating temperature | |
| Temperature range | -40 to +90 °C |
| Short-term maximum | peaks to 125 °C |
Heavy-duty woodworking and joinery chip & dust extraction, sawmilling, cabinet-making and furniture production, general industry extraction, and long or high-vacuum ducting runs to central dust collectors.
When a lightweight hose won’t survive the workload, this is the step up. The thicker, highly abrasion-resistant wall and excellent tensile and tear strength make it ideal for chip extraction from most heavier woodworking machines — including planer-thicknessers, spindle moulders, tenoners, four-siders and CNC routers — and for long or high-vacuum ducting runs to a central extractor or cyclone. Its flame-retardant wall suits the combustible dust and chips generated in timber, joinery and cabinet-making environments, while staying flexible enough to route around machinery.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 38 | — | 25.0 | — | 1.6 | 0.24 |
| 50 | — | 28.0 | — | 1.3 | 0.22 |
| 63 | — | 40.0 | — | 1.0 | 0.19 |
| 76 | — | 45.0 | — | 0.9 | 0.17 |
| 82 | — | 50.0 | — | 0.9 | 0.16 |
| 90 | — | 52.0 | — | 0.9 | 0.16 |
| 102 | — | 60.0 | — | 0.9 | 0.14 |
| 110 | — | 62.0 | — | 0.8 | 0.13 |
| 120 | — | 65.0 | — | 0.8 | 0.11 |
| 127 | — | 70.0 | — | 0.8 | 0.1 |
| 140 | — | 75.0 | — | 0.7 | 0.08 |
| 152 | — | 80.0 | — | 0.7 | 0.08 |
| 160 | — | 85.0 | — | 0.6 | 0.07 |
| 180 | — | 95.0 | — | 0.6 | 0.07 |
| 203 | — | 105.0 | — | 0.6 | 0.07 |
| 229 | — | 120.0 | — | 0.5 | 0.07 |
| 254 | — | 130.0 | — | 0.5 | 0.06 |
| 305 | — | 160.0 | — | 0.3 | 0.06 |
| 315 | — | 170.0 | — | 0.3 | 0.05 |
| 350 | — | 190.0 | — | 0.2 | 0.03 |
| 400 | — | 220.0 | — | 0.2 | 0.02 |
