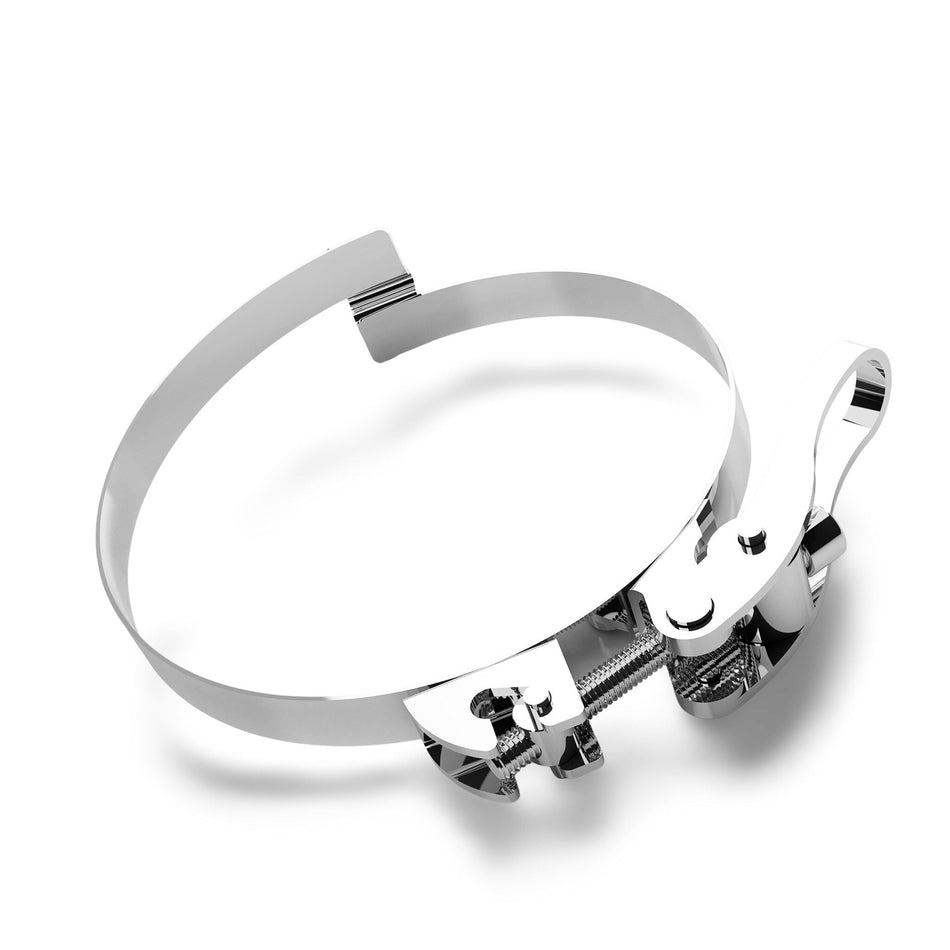

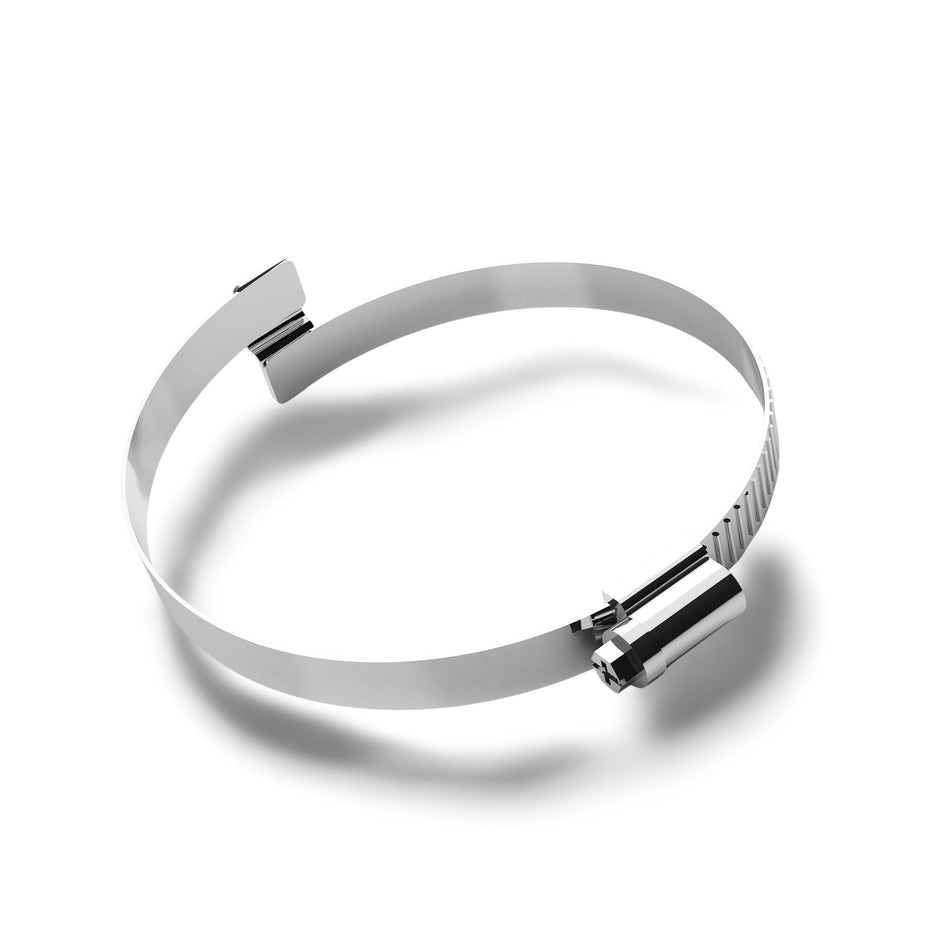

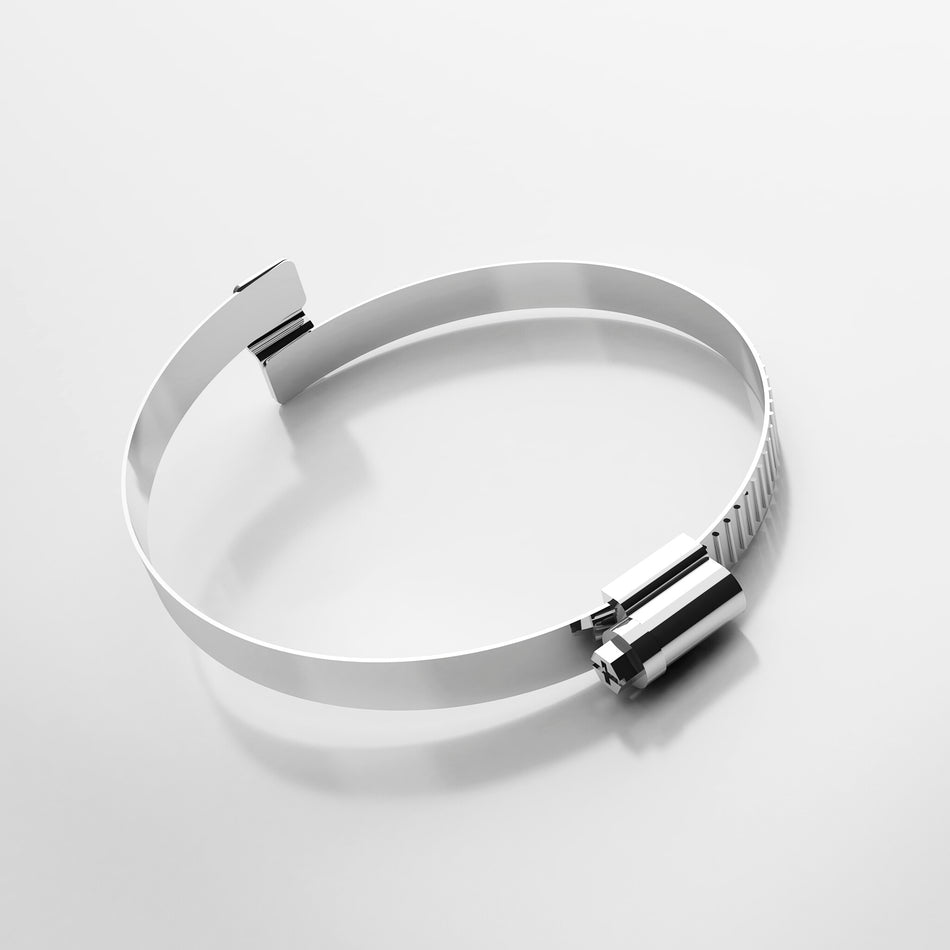

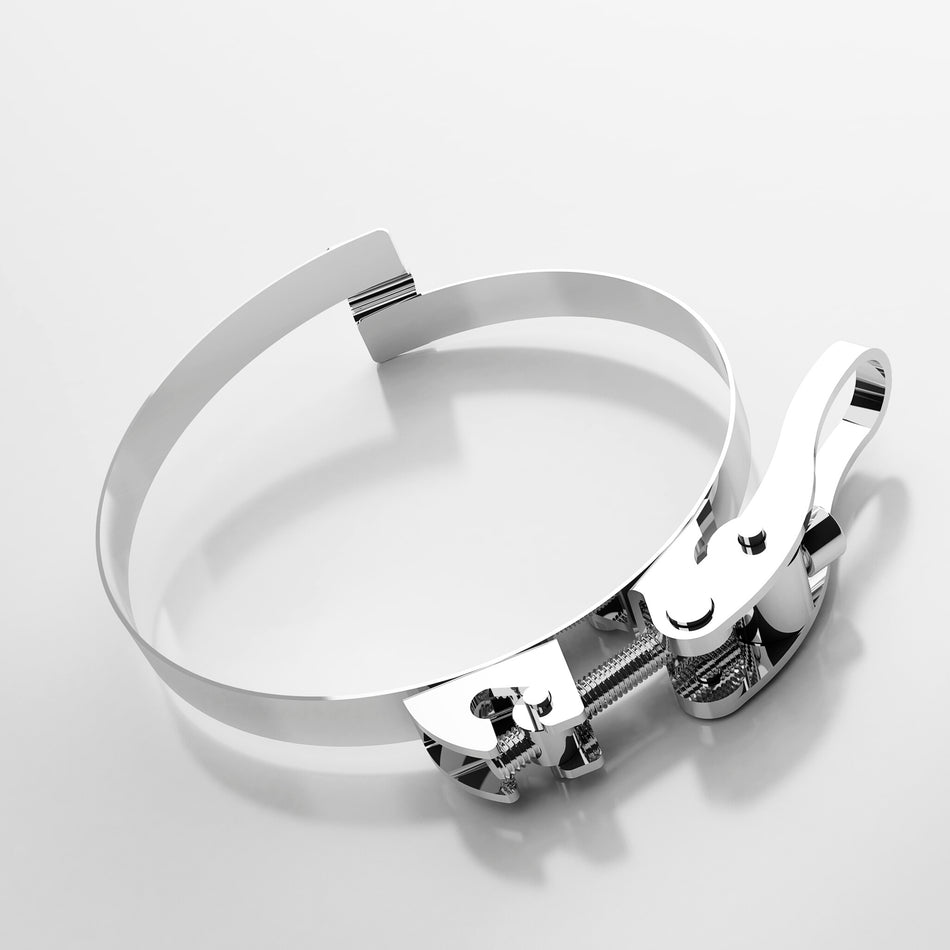

Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

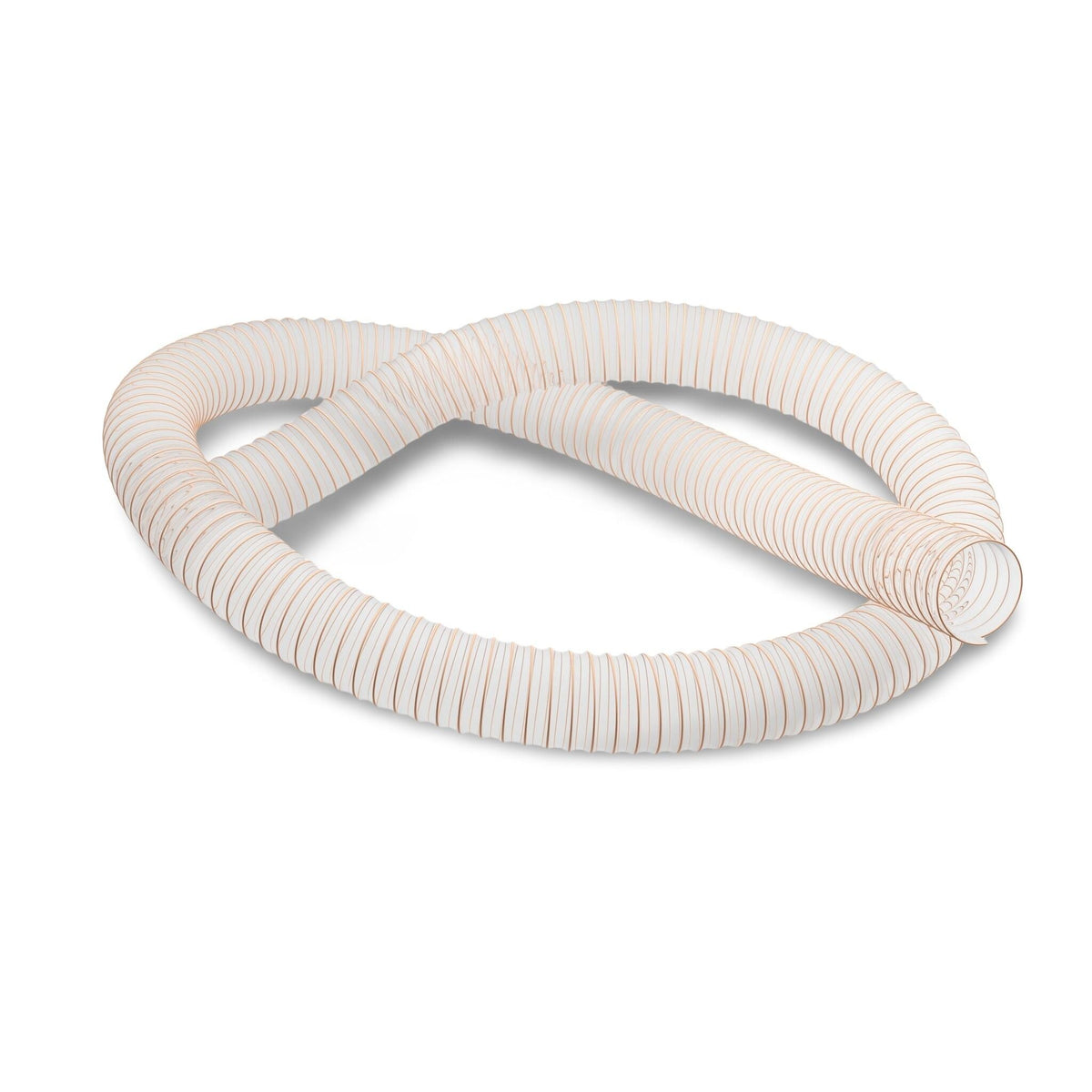

The Flamex B-F se is a flame-retardant polyurethane extraction hose, built for wood dust and chip extraction in busy workshops. Lightweight, highly flexible and crush-resistant, it links table saws, sanders, planers, thicknessers and CNC routers to your extractor or ducting run — and its clear wall lets you spot blockages and flow at a glance.
Because wood dust is combustible, the wall is flame-retardant to DIN 4102-B1 and the hose is approved to the German wood-trade standard Holz-BG (BGI 739-2). With the embedded steel spiral earthed, it also meets TRGS 727 for the aspirated transport of flammable dusts — the reassurance you want when moving fine timber dust around a workshop.
Constructed as a PU film hose with an embedded spring-steel support coil and a hard-wearing polyester-polyurethane wall (approx. 0.5 mm between the spirals), it runs from -40 °C to +90 °C (short peaks to 125 °C) and compresses roughly 1:4 for easy storage. Available in bore sizes from 38 mm to 400 mm in 10 m and 15 m coils.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | film hose with embedded support coil |
| Spiral design | steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | highly abrasion-resistant material; wall thickness between the spirals approx. 0.5 mm |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical properties | good UV resistance, halogen-free, good resistance to chemicals, petrol and oil, plasticiser-free |
| Mechanical properties | permanently kink-resistant, compressible approx. 1:4 |
| Flexibility | very flexible |
| Weight | light |
| Pressure resistance | moderately pressure resistant |
| Colour | transparent |
| Operating temperature | |
| Temperature range | -40 to +90 °C |
| Short-term maximum | peaks to 125 °C |
Woodworking and joinery dust & chip extraction, Agriculture, Automotive, Plant & Mechanical Engineering, General Industry, Ventilation & Air-conditioning, Bulk & Construction, Chemistry, Food & Pharma, Waste Disposal & Cleaning Technology, Plastics, Conveying & feeding technology, Textile, Printing & Paper, Metal & Toolmaking.
Light enough to reposition all day, flexible enough for tight machine hook-ups, and rated for the fine, combustible dust that timber, MDF and plywood throw off. It connects to most woodworking machines — including table saws, bandsaws, planer-thicknessers, spindle moulders, drum and belt sanders, CNC routers and downdraft benches — or runs as flexible extraction ducting between machines and a central extractor or dust collector. The abrasion-resistant wall shrugs off the shavings and grit that wear out cheaper hose, and earthing the spiral keeps static under control on fine-dust runs.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 38 | 46.0 | 20.0 | — | 0.82 | 0.24 |
| 51 | 57.0 | 25.0 | — | 0.78 | 0.2 |
| 60 | 68.0 | 35.0 | — | 0.76 | 0.19 |
| 65 | 73.0 | 38.0 | — | 0.68 | 0.16 |
| 70 | 78.0 | 40.0 | — | 0.61 | 0.16 |
| 76 | 83.0 | 43.0 | — | 0.61 | 0.13 |
| 80 | 88.0 | 45.0 | — | 0.53 | 0.13 |
| 90 | 99.0 | 50.0 | — | 0.46 | 0.09 |
| 102 | 108.0 | 55.0 | — | 0.46 | 0.09 |
| 110 | 119.0 | 60.0 | — | 0.38 | 0.09 |
| 115 | 124.0 | 63.0 | — | 0.38 | 0.09 |
| 120 | 129.0 | 65.0 | — | 0.38 | 0.09 |
| 127 | 136.0 | 68.0 | — | 0.38 | 0.09 |
| 130 | 139.0 | 70.0 | — | 0.3 | 0.09 |
| 140 | 149.0 | 75.0 | — | 0.3 | 0.06 |
| 152 | 159.0 | 80.0 | — | 0.3 | 0.06 |
| 160 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 180 | 189.0 | 95.0 | — | 0.23 | 0.06 |
| 203 | 210.0 | 105.0 | — | 0.23 | 0.06 |
| 225 | 235.0 | 118.0 | — | 0.15 | 0.03 |
| 250 | 257.0 | 128.0 | — | 0.15 | 0.03 |
| 300 | 310.0 | 155.0 | — | 0.14 | 0.03 |
| 315 | — | — | — | — | — |
| 350 | 360.0 | 180.0 | — | 0.12 | 0.02 |
| 400 | 410.0 | 210.0 | — | 0.12 | 0.02 |
