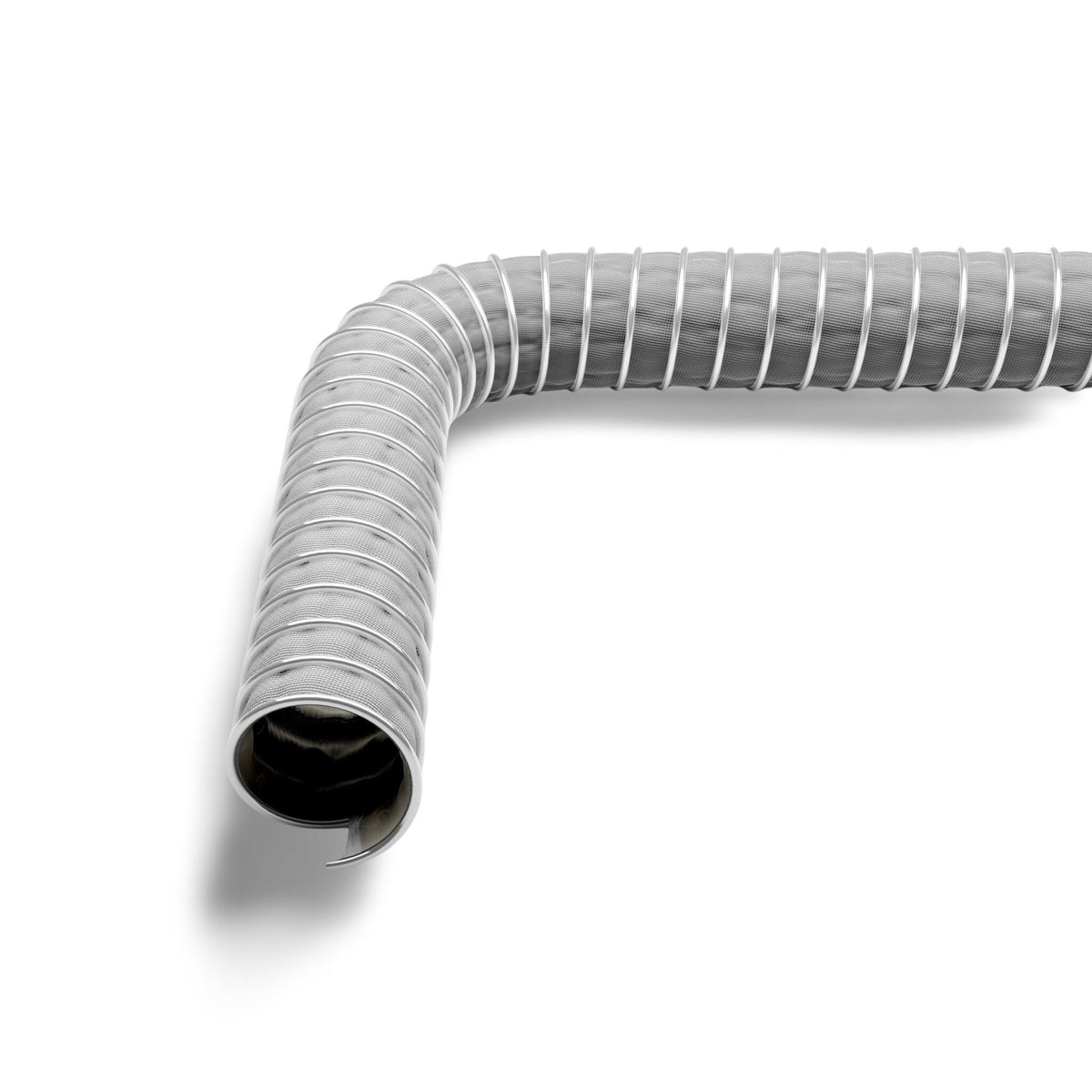

The Master-Clip HT 1100 is a medium- and high temperature hose for temperatures up to 1100 °c. It is very flexible and heavy in weight, moderately pressure resistant / pressure resistance depending on design, not recommended for overpressure applications, with a silver grey wall.
Constructed as a spiral hose with clamping profile with a stainless steel wire mesh wall, it operates from -20 °C to +1100 °C (peaks to 1100 °C exhaust gas temperature with proper use. For negative pressure applications and at least 50% fresh air at maximum temperature). Available in bore sizes from 75–900 mm, in 6 m, 10 m lengths.
| Construction & material | |
|---|---|
| Type of construction | spiral hose with clamping profile |
| Design of the helix | metal band, formed as a clamping profile |
| Material of the helix | steel strip, VA steel 1.4512 |
| Design of the external spiral | designed as an additional protective profile |
| Execution of the wall | made of three layers |
| Design of inner and outer hose | interlayer made of thermal textile fabric |
| Material of the inner layer | stainless steel wire mesh |
| Execution of the external layer | reinforced by interwoven VA wire, coating with heat stabilisers |
| Material of the outer layer | high temperature fabric |
| Properties | |
| Chemical Properties | silicone-free |
| Flexibility | very flexible |
| Physical Properties | flame resistant |
| Weight | heavy |
| Pressure Resistance | moderately pressure resistant, pressure resistance depending on design, not recommended for overpressure applications |
| Colour | silver grey |
| Operating temperature | |
| Temperature Range | -20 to 1100 °C |
| short-term maximum temperature | peaks to 1100 °C exhaust gas temperature with proper use. For negative pressure applications and at least 50% fresh air at maximum temperature |
| proper use | the specifications apply to flue gas temperatures in the context of negative pressure applications with a minimum of 50% fresh air supply up to the maximum specified temperature |
Automotive, Plant & Mechanical Engineering, Industry, aviation technology, Ventilation & Air-conditioning, Printing & Paper, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 75 | — | 45.0 | — | — | 0.3 |
| 80 | — | 48.0 | — | — | 0.27 |
| 90 | — | 54.0 | — | — | 0.25 |
| 100 | — | 60.0 | — | — | 0.2 |
| 110 | — | 66.0 | — | — | 0.16 |
| 120 | — | 72.0 | — | — | 0.14 |
| 125 | — | 75.0 | — | — | 0.12 |
| 130 | — | 78.0 | — | — | 0.12 |
| 140 | — | 84.0 | — | — | 0.1 |
| 150 | — | 90.0 | — | — | 0.09 |
| 160 | — | 96.0 | — | — | 0.08 |
| 170 | — | 102.0 | — | — | 0.07 |
| 175 | — | 105.0 | — | — | 0.07 |
| 180 | — | 126.0 | — | — | 0.06 |
| 200 | — | 140.0 | — | — | 0.05 |
| 215 | — | 151.0 | — | — | 0.05 |
| 225 | — | 158.0 | — | — | 0.04 |
| 250 | — | 175.0 | — | — | 0.03 |
| 275 | — | 193.0 | — | — | 0.03 |
| 300 | — | 210.0 | — | — | 0.02 |
| 315 | — | 221.0 | — | — | 0.02 |
| 325 | — | 228.0 | — | — | 0.02 |
| 350 | — | 245.0 | — | — | 0.02 |
| 375 | — | 300.0 | — | — | 0.02 |
| 400 | — | 320.0 | — | — | 0.01 |
| 450 | — | 360.0 | — | — | 0.01 |
| 500 | — | 400.0 | — | — | 0.01 |
| 550 | — | 440.0 | — | — | 0.01 |
| 600 | — | 480.0 | — | — | 0.01 |
| 700 | — | 560.0 | — | — | 0.01 |
| 800 | — | 640.0 | — | — | 0.01 |
| 900 | — | 720.0 | — | — | 0.01 |
