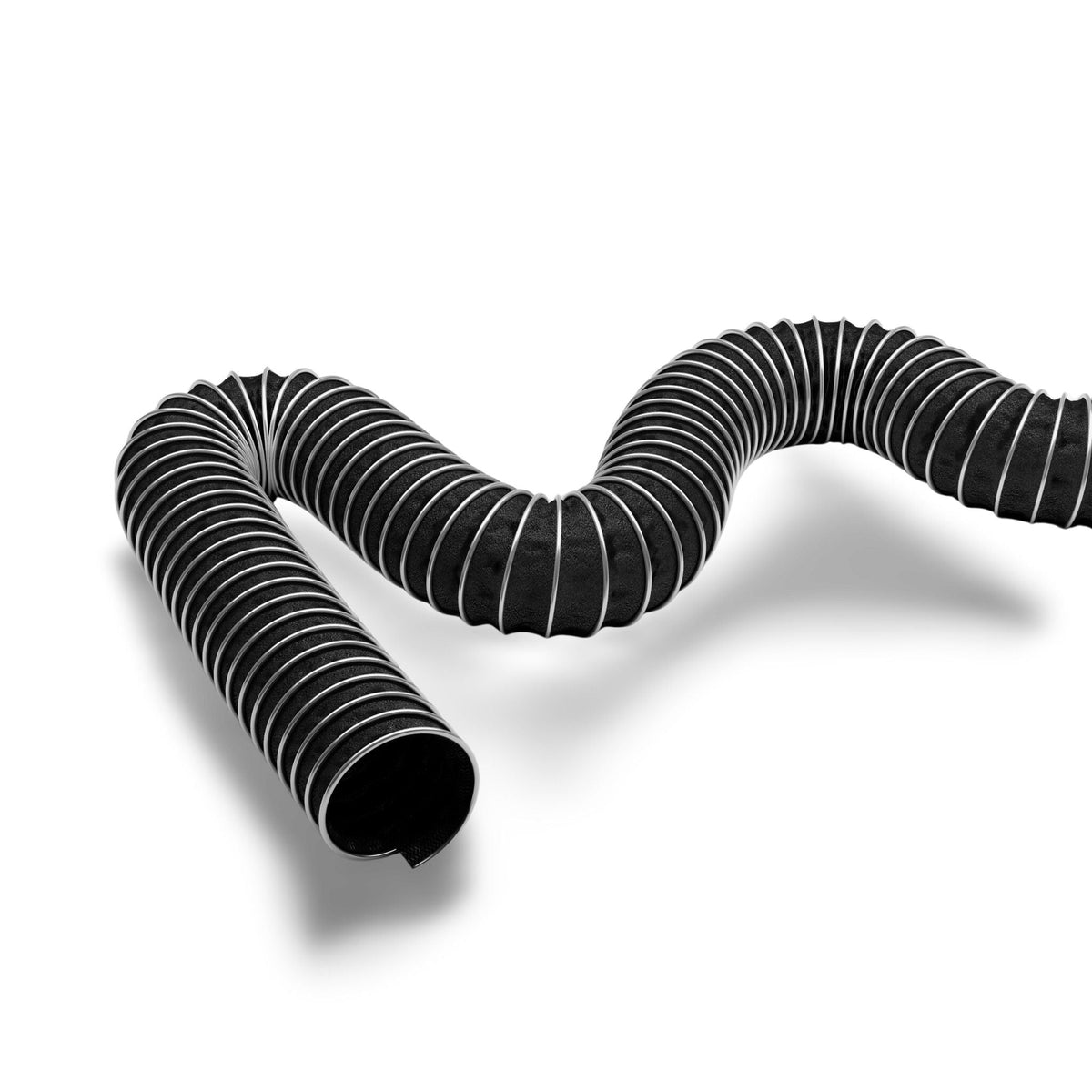

The Master Clip Iso Neoprene is a 2-layer spiral hose with clip profile, medium- and high-temperature hose for temperatures up to. It is very flexible, moderately pressure resistant.
Constructed as a spiral hose with clamping profile with a polyester fabric wall, it operates from -35 °C to +130 °C (150 °C). Available in bore sizes from 76–300 mm, in 10 m lengths.
| Construction & material | |
|---|---|
| Type of construction | spiral hose with clamping profile |
| Design of the helix | metal band, formed as a clamping profile |
| Material of the helix | steel strip, hot-dip galvanised |
| Design of the external spiral | designed as an additional protective profile |
| Execution of the wall | double-layered, coating of neoprene |
| Material of the wall | polyester fabric |
| Properties | |
| Chemical Properties | very good resistance to chemicals |
| Mechanical Properties | small bending radius, compressible approx. 1:3, resistance to vibrations and mechanical-dynamic load (cycle operation) |
| Flexibility | very flexible |
| Pressure Resistance | moderately pressure resistant |
| Operating temperature | |
| Temperature Range | -35 to 130 °C |
| short-term maximum temperature | 150 °C |
Automotive.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 76 | — | 45.0 | — | 0.62 | 0.25 |
| 100 | — | 60.0 | — | 0.51 | 0.16 |
| 125 | — | 75.0 | — | 0.33 | 0.1 |
| 150 | — | 90.0 | — | 0.22 | 0.07 |
| 200 | — | 120.0 | — | 0.15 | 0.04 |
| 225 | — | 160.0 | — | 0.12 | 0.03 |
| 250 | — | 180.0 | — | 0.1 | 0.02 |
| 300 | — | 210.0 | — | 0.07 | 0.01 |
