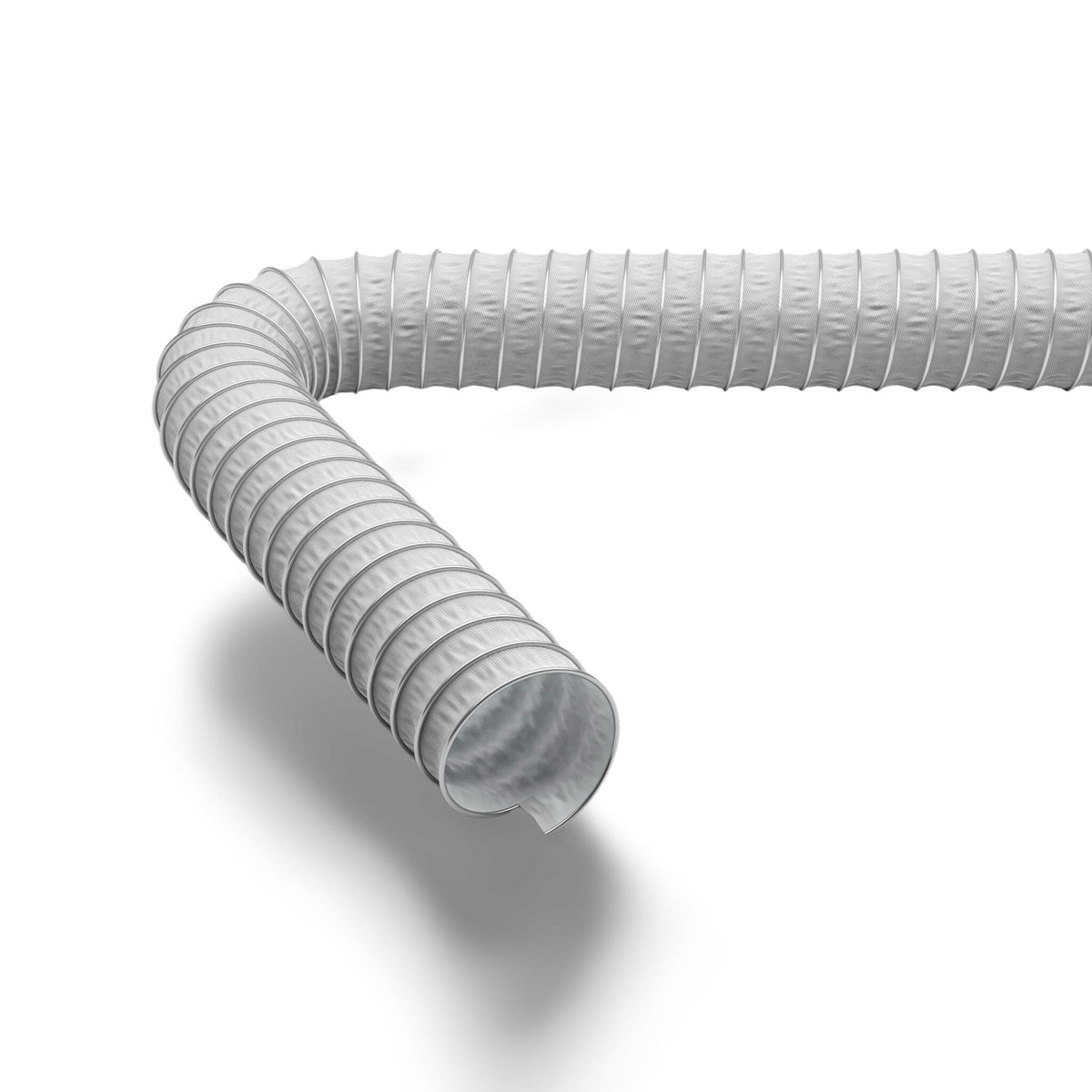

The Master-Clip SILICON is a medium- and high-temperature hose for temperatures up to +300 °C. It is very flexible and light in weight, moderately pressure resistant, with a silver grey wall.
Constructed as a spiral hose with clamping profile with a glass fibre fabric wall, it operates from -60 °C to +300 °C (+350 °C). Available in bore sizes from 50–900 mm, in 6 m, 10 m, 15 m lengths.
Wall material: flame retardant.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | spiral hose with clamping profile |
| Design of the helix | metal band, formed as a clamping profile |
| Material of the helix | steel strip, hot-dip galvanised |
| Design of the external spiral | designed as an additional protective profile |
| Execution of the wall | made of specified material, coated, coating in silicone, single layer executed |
| Material of the wall | glass fibre fabric |
| Properties | |
| Chemical Properties | good UV resistance, good ozone resistance |
| Mechanical Properties | compressible approx. 1:6 |
| Flexibility | very flexible |
| Physical Properties | heat-resistant |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | silver grey |
| Operating temperature | |
| Temperature Range | -60 to 300 °C |
| short-term maximum temperature | +350 °C |
| proper use | the specifications apply to exhaust gas temperatures when the exhaust gas flue is used correctly with a minimum of 30% fresh air supply at the maximum specified temperature |
aviation technology, Ventilation & Air-conditioning, Sea & Rail transport, Vehicle Construction.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 50 | — | 30.0 | — | 0.85 | 0.31 |
| 55 | — | 33.0 | — | 0.78 | 0.26 |
| 60 | — | 36.0 | — | 0.68 | 0.22 |
| 65 | — | 39.0 | — | 0.59 | 0.19 |
| 70 | — | 42.0 | — | 0.53 | 0.16 |
| 75 | — | 45.0 | — | 0.47 | 0.14 |
| 80 | — | 48.0 | — | 0.43 | 0.12 |
| 90 | — | 54.0 | — | 0.36 | 0.1 |
| 100 | — | 60.0 | — | 0.3 | 0.08 |
| 110 | — | 66.0 | — | 0.26 | 0.07 |
| 120 | — | 72.0 | — | 0.22 | 0.06 |
| 125 | — | 75.0 | — | 0.21 | 0.05 |
| 130 | — | 78.0 | — | 0.2 | 0.05 |
| 140 | — | 84.0 | — | 0.18 | 0.04 |
| 150 | — | 90.0 | — | 0.16 | 0.04 |
| 160 | — | 96.0 | — | 0.14 | 0.03 |
| 170 | — | 102.0 | — | 0.13 | 0.03 |
| 175 | — | 105.0 | — | 0.12 | 0.03 |
| 180 | — | 108.0 | — | 0.12 | 0.02 |
| 200 | — | 120.0 | — | 0.1 | 0.02 |
| 215 | — | 151.0 | — | 0.09 | 0.02 |
| 250 | — | 175.0 | — | 0.07 | 0.01 |
| 275 | — | 193.0 | — | 0.06 | 0.01 |
| 300 | — | 210.0 | — | 0.05 | 0.01 |
| 315 | — | 221.0 | — | 0.05 | 0.01 |
| 350 | — | 245.0 | — | 0.04 | 0.01 |
| 375 | — | 263.0 | — | 0.04 | 0.01 |
| 400 | — | 280.0 | — | 0.03 | 0.01 |
| 450 | — | 360.0 | — | 0.03 | 0.01 |
| 550 | — | 440.0 | — | 0.02 | 0.01 |
| 600 | — | 480.0 | — | 0.02 | 0.01 |
| 700 | — | 560.0 | — | 0.01 | 0.01 |
| 800 | — | 640.0 | — | 0.01 | 0.01 |
| 900 | — | 720.0 | — | 0.01 | 0.01 |
