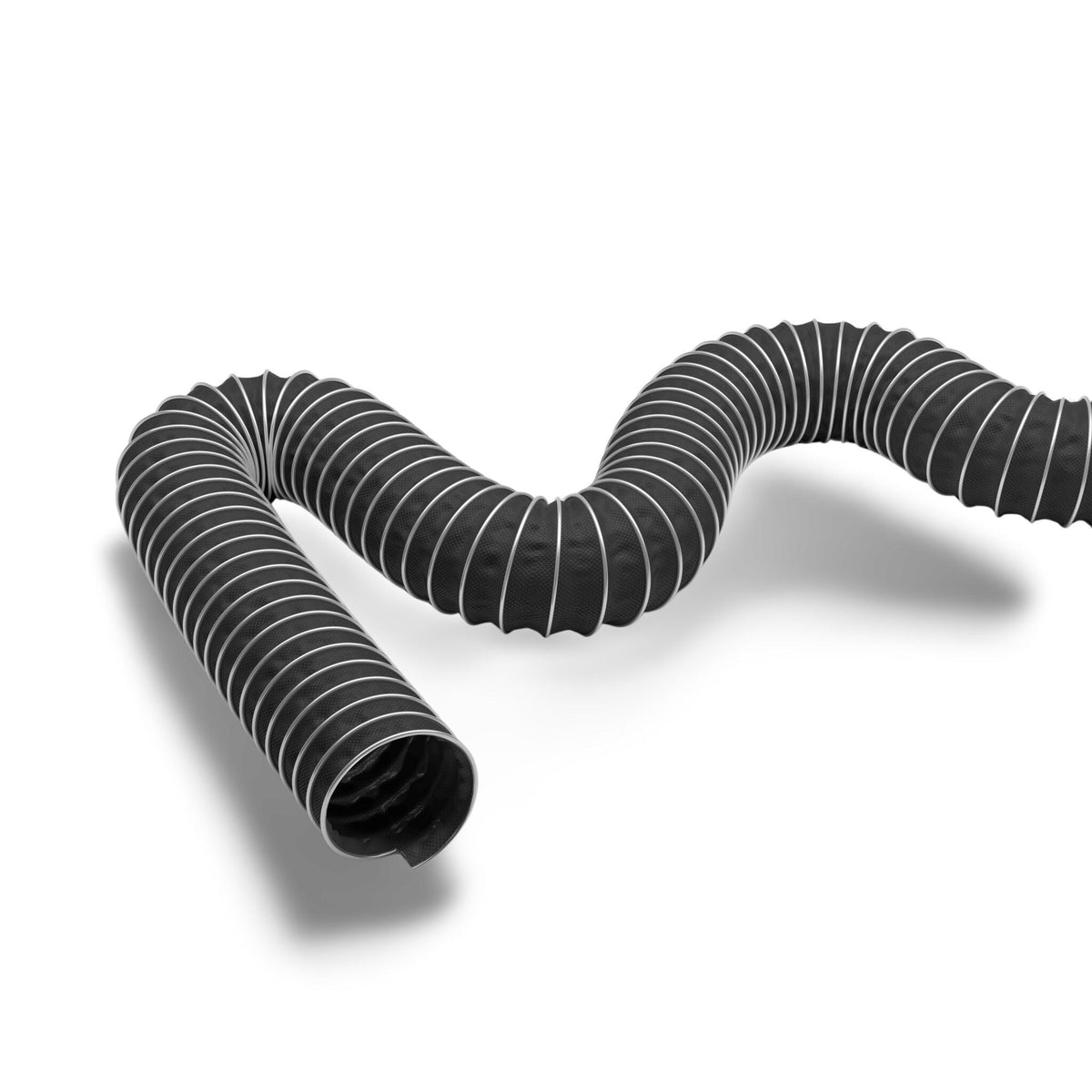

The Master-Clip VINYL EL is a suction & blower hose made from PVC coated polyester fabric, electroconductive. It is very flexible and light in weight, moderately pressure resistant, with a black wall.
Constructed as a spiral hose with clamping profile with a polyester fabric wall, it operates from -20 °C to +70 °C (peaks to 80 °C). Available in bore sizes from 50–900 mm, in 6 m, 10 m, 15 m, 20 m lengths.
Wall material: surface resistance R₀ < 10⁶ Ohm.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | spiral hose with clamping profile |
| Design of the helix | metal band, formed as a clamping profile |
| Material of the helix | steel strip, hot-dip galvanised |
| Design of the external spiral | designed as an additional protective profile |
| Execution of the wall | made of electrically conductive material, coated, coating in PVC |
| Material of the wall | polyester fabric |
| Properties | |
| Chemical Properties | non-toxic material, physiologically harmless, odourless and tasteless, good resistance to aggressive vapours |
| Mechanical Properties | compressible approx. 1:6, resistance to vibrations and mechanical-dynamic load (cycle operation) |
| Flexibility | very flexible |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | black |
| Operating temperature | |
| Temperature Range | -20 to 70 °C |
| short-term maximum temperature | peaks to 80 °C |
Ventilation & Air-conditioning, Chemistry, Plastics.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 50 | — | 30.0 | — | 0.9 | 0.31 |
| 55 | — | 33.0 | — | 0.85 | 0.26 |
| 60 | — | 36.0 | — | 0.78 | 0.22 |
| 65 | — | 39.0 | — | 0.68 | 0.19 |
| 70 | — | 42.0 | — | 0.67 | 0.16 |
| 75 | — | 45.0 | — | 0.62 | 0.14 |
| 80 | — | 48.0 | — | 0.61 | 0.12 |
| 90 | — | 54.0 | — | 0.56 | 0.11 |
| 100 | — | 60.0 | — | 0.51 | 0.1 |
| 110 | — | 66.0 | — | 0.48 | 0.08 |
| 120 | — | 72.0 | — | 0.36 | 0.07 |
| 125 | — | 75.0 | — | 0.33 | 0.06 |
| 130 | — | 78.0 | — | 0.28 | 0.06 |
| 140 | — | 84.0 | — | 0.25 | 0.05 |
| 150 | — | 90.0 | — | 0.22 | 0.04 |
| 160 | — | 96.0 | — | 0.21 | 0.04 |
| 170 | — | 102.0 | — | 0.19 | 0.03 |
| 175 | — | 105.0 | — | 0.19 | 0.03 |
| 180 | — | 108.0 | — | 0.17 | 0.03 |
| 200 | — | 120.0 | — | 0.15 | 0.03 |
| 215 | — | 151.0 | — | 0.13 | 0.02 |
| 225 | — | 158.0 | — | 0.12 | 0.02 |
| 250 | — | 175.0 | — | 0.1 | 0.02 |
| 275 | — | 193.0 | — | 0.08 | 0.01 |
| 300 | — | 210.0 | — | 0.07 | 0.01 |
| 315 | — | 221.0 | — | 0.06 | 0.01 |
| 325 | — | 228.0 | — | 0.06 | 0.01 |
| 350 | — | 245.0 | — | 0.06 | 0.01 |
| 375 | — | 263.0 | — | 0.05 | 0.01 |
| 400 | — | 280.0 | — | 0.05 | 0.01 |
| 450 | — | 360.0 | — | 0.05 | 0.01 |
| 500 | — | 400.0 | — | 0.04 | 0.01 |
| 550 | — | 440.0 | — | 0.04 | 0.01 |
| 600 | — | 480.0 | — | 0.04 | 0.01 |
| 700 | — | 560.0 | — | 0.03 | 0.01 |
| 800 | — | 640.0 | — | 0.02 | 0.01 |
| 900 | — | 720.0 | — | 0.02 | 0.01 |
