Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

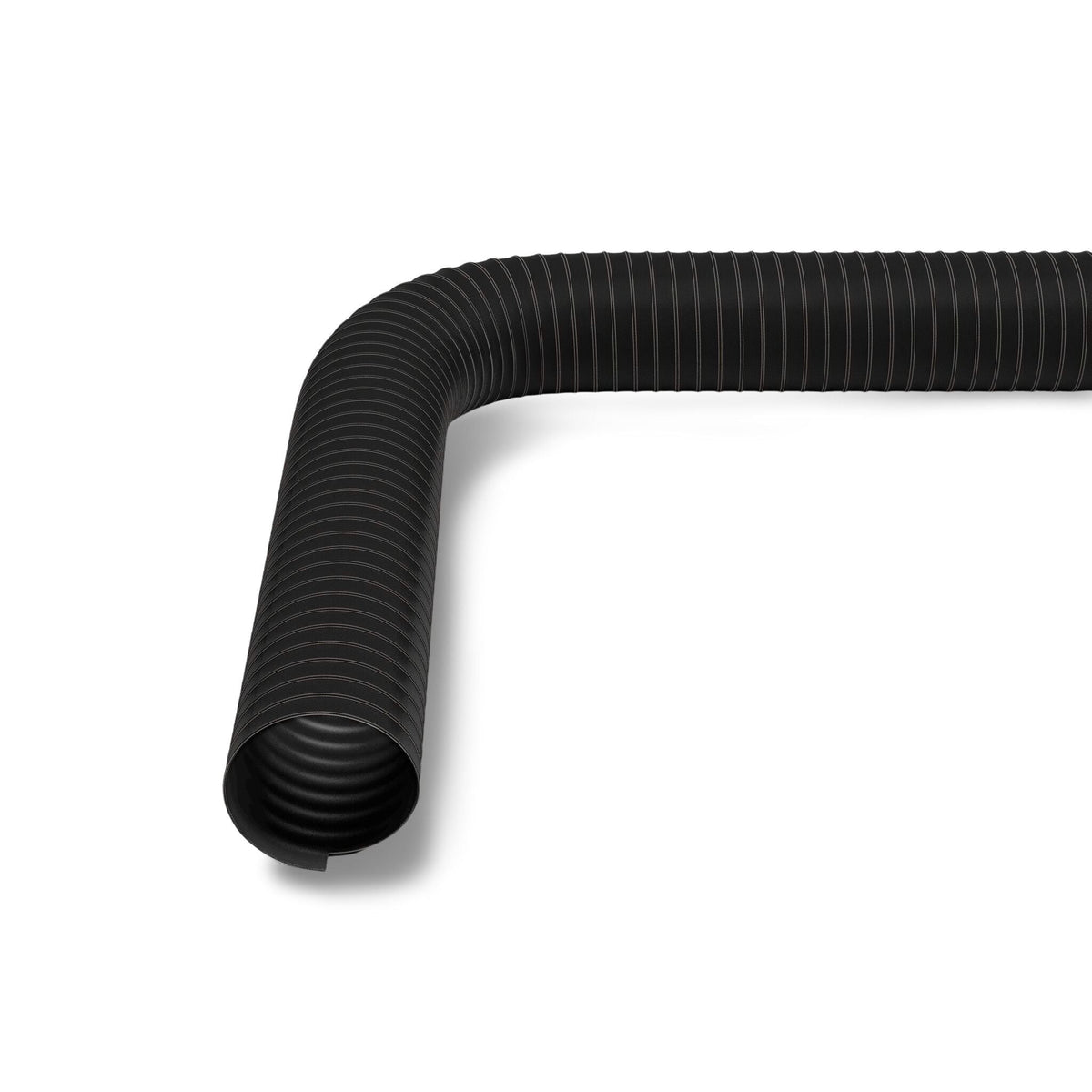

The Master-NEO 2 is a medium and high temperature hose for temperatures up to +135 °c, two layers. It is very flexible and light in weight, pressure resistant, with a black wall.
Constructed as a single or multi-layer spiral hose made of vulcanized fabric strips with a glass fabric wall, it operates from -35 °C to +135 °C (-55 °C bis +150 °C). Available in bore sizes from 13–305 mm, in 4 m lengths.
| Construction & material | |
|---|---|
| Type of construction | single or multi-layer spiral hose made of vulcanized fabric strips |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | double-layered, coating of neoprene |
| Material of the inner layer | glass fabric |
| Material of the outer layer | glass fabric |
| Design of the cord | designed as twin cord |
| Material of the cord | glass fibre yarn |
| Properties | |
| Chemical Properties | good resistance to chemicals |
| Flexibility | very flexible |
| Weight | light |
| Pressure Resistance | pressure resistant |
| Colour | black |
| Operating temperature | |
| Temperature Range | -35 to 135 °C |
| short-term maximum temperature | -55 °C bis +150 °C |
Automotive, Plant & Mechanical Engineering, Industry, aviation technology, Ventilation & Air-conditioning, Bulk & Construction, Sea & Rail transport, Chemistry, Plastics, Conveying, lifting & feeding technology, Printing & Paper, Vehicle Construction, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 13 | — | 15.0 | — | 2.8 | 0.64 |
| 19 | — | 15.0 | — | 2.8 | 0.64 |
| 26 | — | 15.0 | — | 2.8 | 0.64 |
| 30 | — | 15.0 | — | 2.8 | 0.64 |
| 32 | — | 16.0 | — | 2.7 | 0.62 |
| 35 | — | 17.0 | — | 2.7 | 0.59 |
| 38 | — | 18.0 | — | 2.6 | 0.59 |
| 41 | — | 19.0 | — | 2.6 | 0.59 |
| 42 | — | 19.0 | — | 2.6 | 0.59 |
| 44 | — | 21.0 | — | 2.6 | 0.55 |
| 45 | — | 21.0 | — | 2.6 | 0.55 |
| 51 | — | 24.0 | — | 2.6 | 0.51 |
| 55 | — | 27.0 | — | 2.5 | 0.48 |
| 57 | — | 28.0 | — | 2.5 | 0.48 |
| 60 | — | 31.0 | — | 2.4 | 0.47 |
| 63 | — | 31.0 | — | 2.4 | 0.47 |
| 64 | — | 31.0 | — | 2.4 | 0.47 |
| 65 | — | 31.0 | — | 2.4 | 0.47 |
| 70 | — | 35.0 | — | 2.3 | 0.43 |
| 76 | — | 38.0 | — | 2.2 | 0.42 |
| 80 | — | 40.0 | — | 2.1 | 0.41 |
| 83 | — | 42.0 | — | 2.1 | 0.4 |
| 90 | — | 44.0 | — | 2.0 | 0.39 |
| 95 | — | 48.0 | — | 1.9 | 0.36 |
| 102 | — | 52.0 | — | 1.9 | 0.34 |
| 108 | — | 55.0 | — | 1.7 | 0.3 |
| 110 | — | 57.0 | — | 1.7 | 0.29 |
| 114 | — | 57.0 | — | 1.6 | 0.28 |
| 120 | — | 61.0 | — | 1.6 | 0.28 |
| 127 | — | 64.0 | — | 1.4 | 0.25 |
| 130 | — | 65.0 | — | 1.3 | 0.23 |
| 140 | — | 70.0 | — | 1.3 | 0.19 |
| 152 | — | 75.0 | — | 1.2 | 0.17 |
| 160 | — | 80.0 | — | 1.1 | 0.15 |
| 165 | — | 83.0 | — | 1.0 | 0.14 |
| 180 | — | 90.0 | — | 1.0 | 0.12 |
| 203 | — | 101.0 | — | 0.7 | 0.09 |
| 229 | — | 125.0 | — | 0.6 | 0.08 |
| 254 | — | 150.0 | — | 0.5 | 0.07 |
| 305 | — | 210.0 | — | 0.3 | 0.04 |
