Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

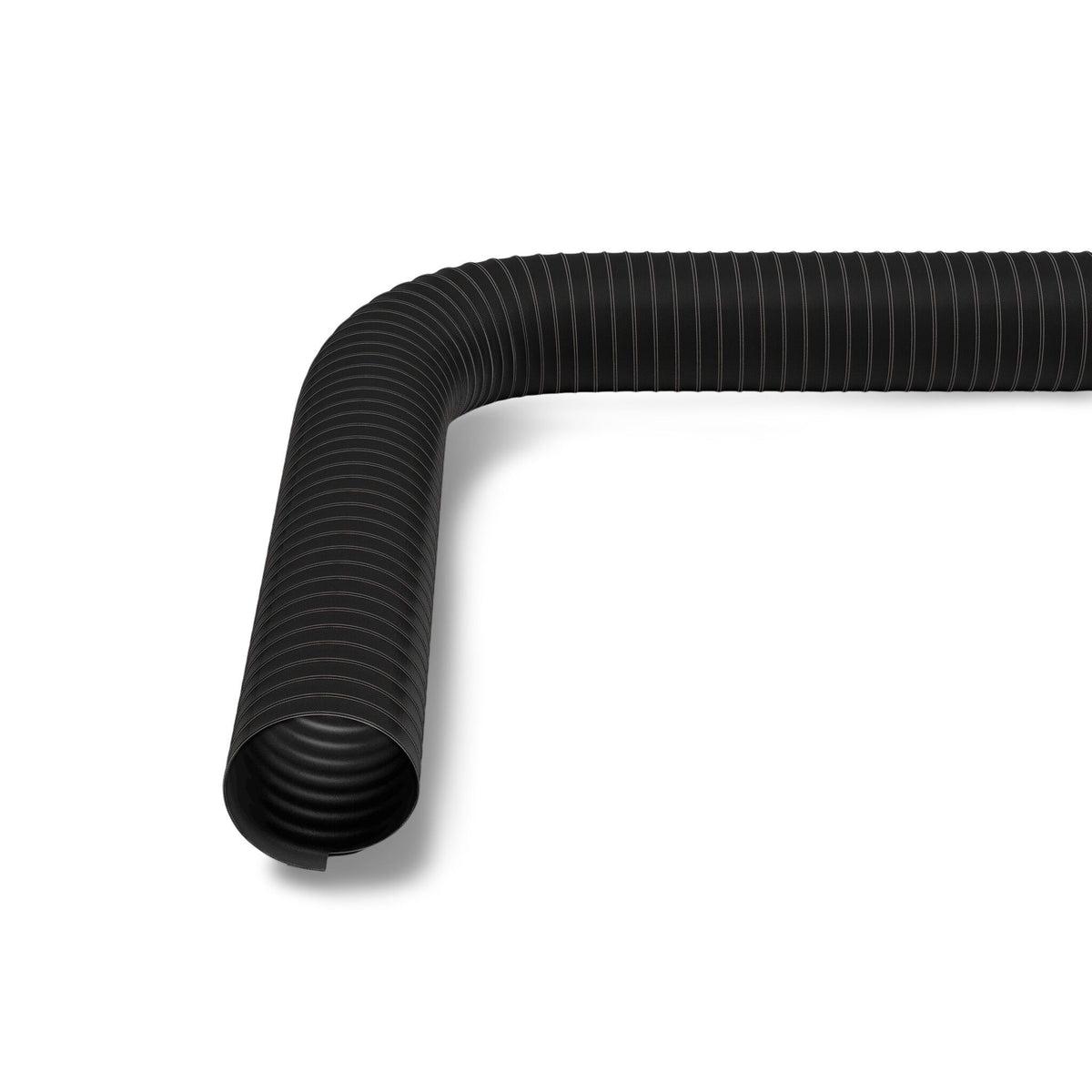

The Master-Neo 2 NR Lined is a hose with a nitrile rubber lining, reinforced with embedded steel wire, three-layer construction &. It is very flexible, moderately pressure resistant.
Constructed as a film hose with embedded support coil with a polyester fabric wall, it operates from -50 °C to +150 °C. Available in bore sizes from 25–76 mm, in 4 m lengths.
| Construction & material | |
|---|---|
| Type of construction | film hose with embedded support coil |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | double-layered, coating of neoprene |
| Material of the wall | polyester fabric |
| Design of the inner layer | lined with nitrile rubber |
| Design of the cord | designed as cord |
| Material of the cord | glass fibre yarn |
| Properties | |
| Chemical Properties | good resistance to petrol, good resistance to chemicals |
| Mechanical Properties | kink-resistant, resistance to vibrations and mechanical-dynamic load (cycle operation) |
| Flexibility | very flexible |
| Pressure Resistance | moderately pressure resistant |
| Other | particularly smooth on the inside |
| Operating temperature | |
| Temperature Range | -50 to 150 °C |
Automotive.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 25 | 29.0 | 50.0 | — | 2.8 | 0.62 |
| 38 | 43.0 | 60.0 | — | 2.7 | 0.59 |
| 44 | 48.0 | 90.0 | — | 2.5 | 0.55 |
| 45 | 48.0 | 90.0 | — | 2.5 | 0.55 |
| 51 | 56.0 | 100.0 | — | 2.4 | 0.51 |
| 57 | 62.0 | 120.0 | — | 2.2 | 0.47 |
| 63 | 68.0 | 130.0 | — | 2.1 | 0.47 |
| 76 | 81.0 | 140.0 | — | 2.0 | 0.45 |
