Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

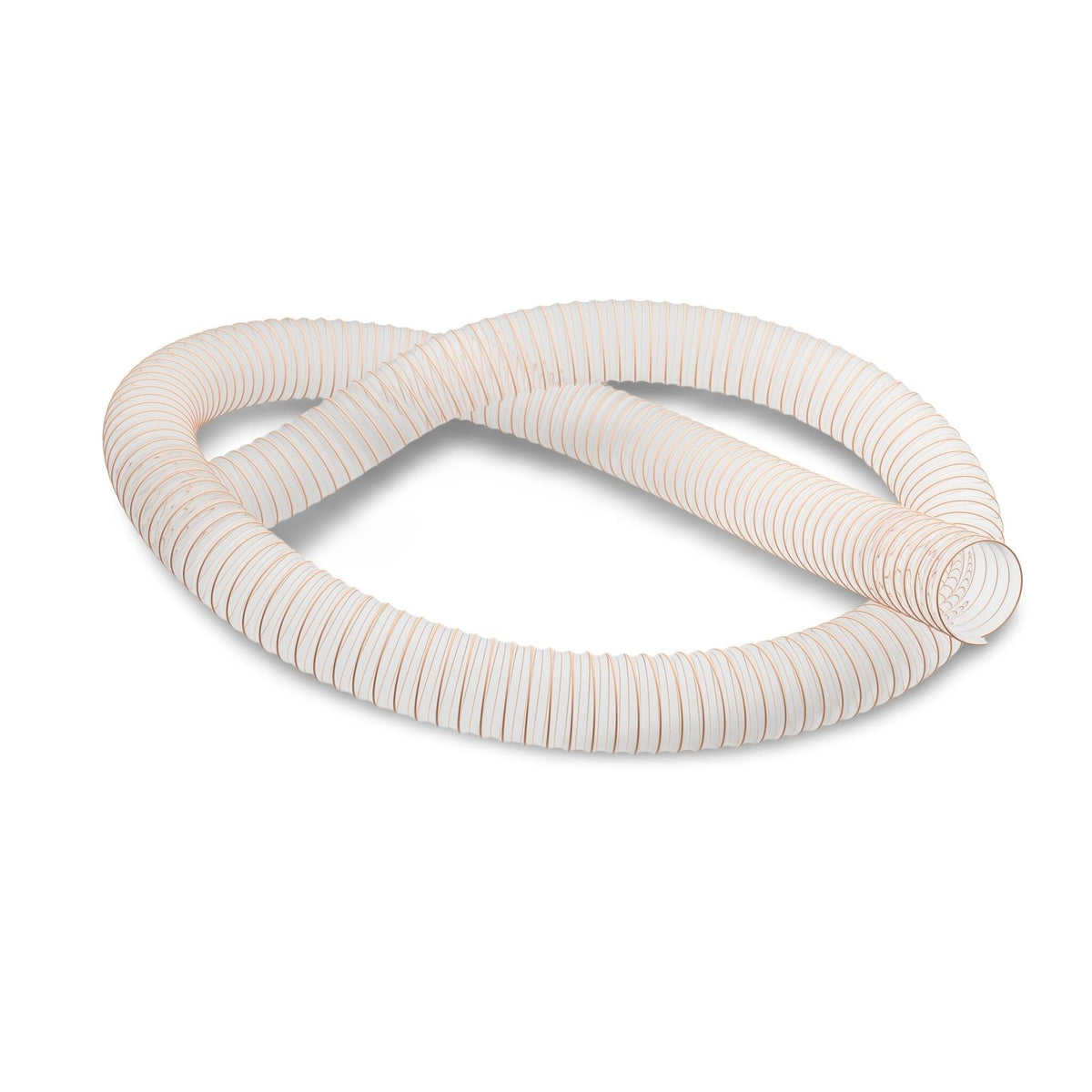

The Master PU LF is an ultra-lightweight polyurethane extraction and transfer hose — the go-to when you want a hose that’s effortless to handle and bends into tight spaces. Exceptionally flexible with a small bending radius, it’s ideal for portable extractors, hand-held tools and cramped workshop hook-ups where a stiffer hose simply won’t route.
Built as a PU film hose with a metal spiral and a hard-wearing polyester-polyurethane wall (approx. 0.4 mm between the spirals), it’s air-tight for efficient suction, runs from -40 °C to +90 °C (short peaks to 125 °C) and compresses roughly 1:5 for easy storage. Available in bore sizes from 38 mm to 406 mm in 6 m, 10 m and 15 m coils.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | film hose with metal spiral |
| Spiral design | steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | highly abrasion-resistant pure material; wall thickness between the spirals approx. 0.4 mm |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical properties | good resistance to petrol, solvents and oil; good UV and ozone resistance; halogen-free; plasticiser-free |
| Mechanical properties | small bending radius, kink-resistant, compressible approx. 1:5 |
| Flexibility | very flexible |
| Physical properties | air-tight |
| Pressure resistance | moderately pressure resistant |
| Operating temperature | |
| Temperature range | -40 to +90 °C |
| Short-term maximum | peaks to 125 °C |
Portable and workshop chip & shaving extraction, hand-tool and machine hook-ups, lightweight ducting and transfer, general industry, and flexible tails between fixed ducting and machines.
Its low weight and small bending radius make it easy to reposition all day and route around tight machinery — connecting portable extractors, hand tools and machines, or acting as a flexible tail between fixed ducting and equipment. The abrasion-resistant, air-tight wall keeps suction strong and resists everyday grit, and the earthable steel spiral helps dissipate static. It’s a favourite for lightweight workshop chip and shaving extraction and portable set-ups where flexibility and low weight matter most.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 38 | 46.0 | 20.0 | — | 0.82 | 0.24 |
| 51 | 57.0 | 25.0 | — | 0.78 | 0.2 |
| 60 | 68.0 | 35.0 | — | 0.76 | 0.19 |
| 65 | 73.0 | 38.0 | — | 0.68 | 0.19 |
| 70 | 78.0 | 40.0 | — | 0.61 | 0.16 |
| 76 | 82.0 | 43.0 | — | 0.3 | 0.11 |
| 80 | 87.0 | 45.0 | — | 0.28 | 0.1 |
| 90 | 98.0 | 50.0 | — | 0.23 | 0.07 |
| 102 | 107.0 | 55.0 | — | 0.23 | 0.07 |
| 110 | 118.0 | 60.0 | — | 0.2 | 0.07 |
| 115 | 123.0 | 63.0 | — | 0.2 | 0.07 |
| 120 | 128.0 | 65.0 | — | 0.2 | 0.07 |
| 127 | 133.0 | 68.0 | — | 0.2 | 0.07 |
| 130 | 138.0 | 70.0 | — | 0.15 | 0.07 |
| 140 | 148.0 | 75.0 | — | 0.15 | 0.05 |
| 152 | 158.0 | 80.0 | — | 0.15 | 0.05 |
| 160 | 168.0 | 85.0 | — | 0.15 | 0.05 |
| 180 | 188.0 | 95.0 | — | 0.11 | 0.05 |
| 203 | 209.0 | 105.0 | — | 0.11 | 0.05 |
| 227 | 235.0 | 118.0 | — | 0.15 | 0.03 |
| 254 | 260.0 | 130.0 | — | 0.15 | 0.03 |
| 304 | 310.0 | 155.0 | — | 0.14 | 0.03 |
| 315 | 325.0 | 160.0 | — | 0.14 | 0.02 |
| 356 | 360.0 | 180.0 | — | 0.12 | 0.02 |
| 406 | 410.0 | 210.0 | — | 0.12 | 0.02 |
