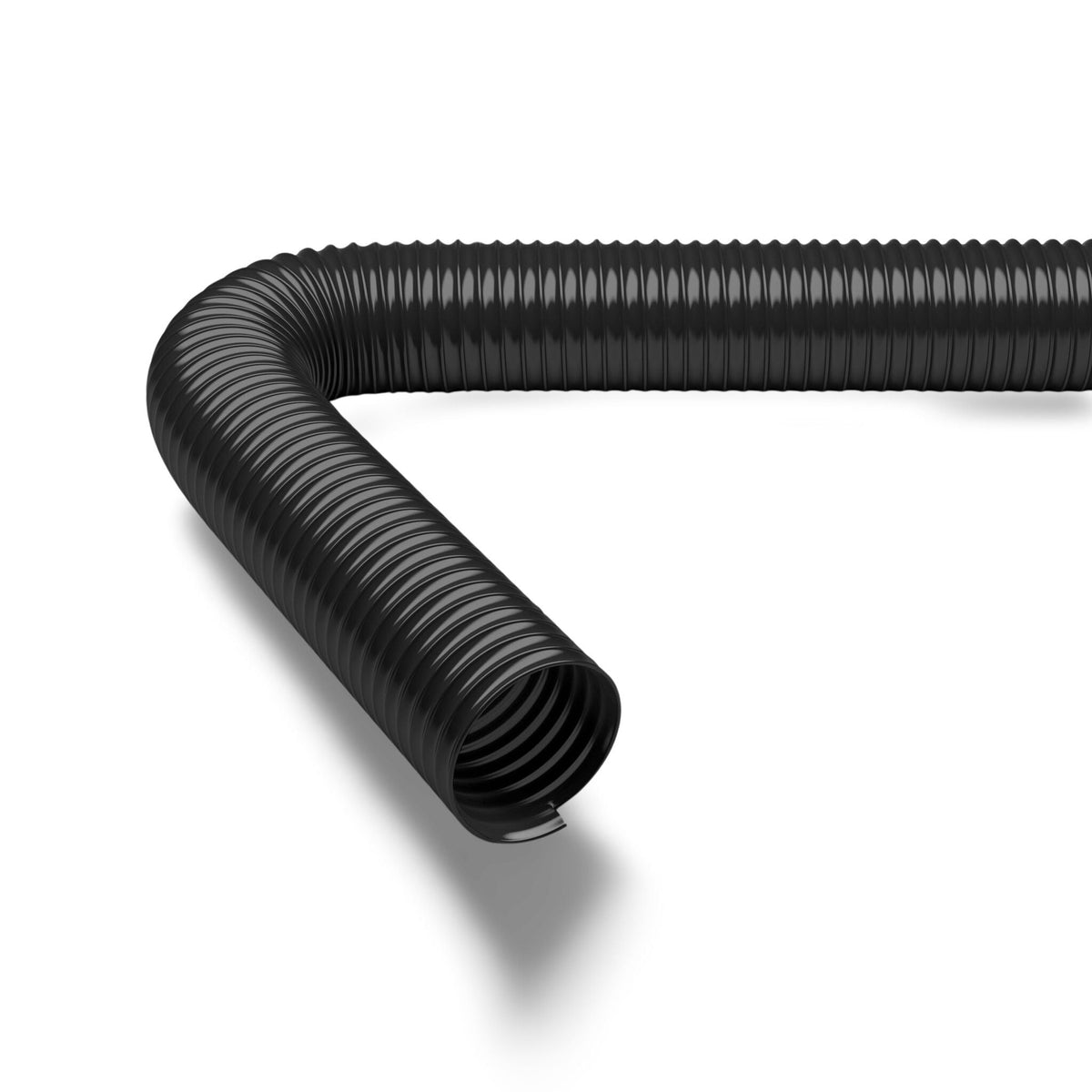

The Master-PUR H EL is a PU suction & transport hose, medium duty, very flexible, electroconductive. It is medium heavy in weight, pressure resistant, with a black wall.
Constructed as a profile extruded hose with metal spiral with a polyester polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 26–254 mm, in 10 m, 15 m, 20 m, 25 m lengths.
Wall material: surface resistance R₀ < 10³ Ohm.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | profile extruded hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of electrically conductive material, wall thickness between the spirals approx. 1.4 mm |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical Properties | halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance |
| Flexibility | flexible |
| Weight | medium heavy |
| Pressure Resistance | pressure resistant |
| Colour | black |
| Other | high vacuum and good pressure resistance, configurable as a hose system with digital interface for compatibility with the AMPIUS® app |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Bulk & Construction, Chemistry, Surface Technology, Food & Pharma, Plastics.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 26 | 33.0 | 47.0 | — | 4.16 | 0.92 |
| 32 | 41.0 | 60.0 | — | 3.25 | 0.92 |
| 38 | 47.0 | 69.0 | — | 3.12 | 0.82 |
| 40 | 49.0 | 72.0 | — | 3.0 | 0.82 |
| 45 | 55.0 | 80.0 | — | 2.95 | 0.81 |
| 51 | 61.0 | 87.0 | — | 2.9 | 0.79 |
| 55 | 65.0 | 95.0 | — | 2.75 | 0.76 |
| 60 | 70.0 | 102.0 | — | 2.55 | 0.74 |
| 65 | 75.0 | 112.0 | — | 2.4 | 0.66 |
| 70 | 80.0 | 117.0 | — | 2.25 | 0.66 |
| 76 | 87.0 | 126.0 | — | 2.0 | 0.59 |
| 80 | 91.0 | 132.0 | — | 2.0 | 0.59 |
| 90 | 101.0 | 149.0 | — | 1.65 | 0.52 |
| 102 | 112.0 | 165.0 | — | 1.5 | 0.44 |
| 110 | 121.0 | 179.0 | — | 1.35 | 0.44 |
| 115 | 126.0 | 186.0 | — | 1.35 | 0.31 |
| 120 | 131.0 | 194.0 | — | 1.3 | 0.31 |
| 127 | 139.0 | 205.0 | — | 1.3 | 0.31 |
| 130 | 141.0 | 209.0 | — | 1.3 | 0.31 |
| 140 | 151.0 | 224.0 | — | 1.05 | 0.25 |
| 152 | 163.0 | 242.0 | — | 1.05 | 0.25 |
| 160 | 171.0 | 255.0 | — | 0.9 | 0.25 |
| 170 | 181.0 | 270.0 | — | 0.9 | 0.18 |
| 175 | 181.0 | 270.0 | — | 0.9 | 0.18 |
| 180 | 191.0 | 285.0 | — | 0.75 | 0.18 |
| 203 | 215.0 | 321.0 | — | 0.75 | 0.18 |
| 225 | 237.0 | 353.0 | — | 0.6 | 0.12 |
| 250 | 259.0 | 385.0 | — | 0.6 | 0.12 |
| 254 | 263.0 | 390.0 | — | 0.6 | 0.12 |
