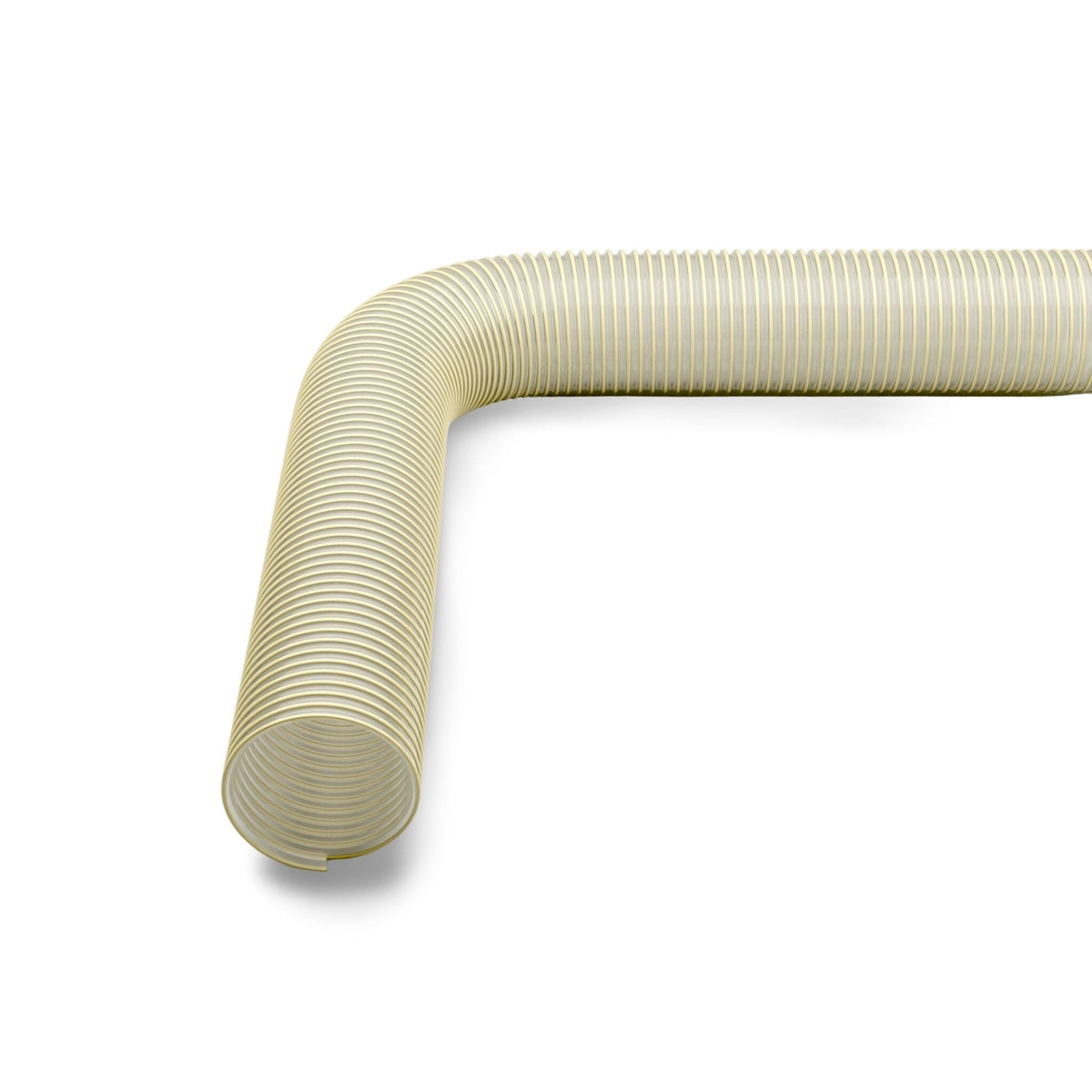

The Master-PUR HX Trivolution is a PU transport hose & suction hose, highly abrasion resistant and vacuum proof, with reinforcement. It is moderately flexible and heavy in weight, very pressure resistant, with a transparent wall.
Constructed as a profile extruded hose with metal spiral with a polyester polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 32–300 mm, in 10 m, 15 m, 20 m lengths.
Wall material: surface resistance R₀ < 10⁹ Ohm, measured according to DIN EN ISO 8031; flame retardant according to DIN 4102 B1.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | profile extruded hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of pure material, made of specified material, extremely abrasion resistant due to specific reinforcement underneath the spiral, addition of a non-migrating permanent antistatic agent, wall thickness between the spirals approx. 2.0 mm |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical Properties | microbe-resistant, good UV resistance, halogen-free, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free |
| Flexibility | moderately flexible |
| Physical Properties | permanently antistatic |
| Weight | heavy |
| Pressure Resistance | very pressure resistant |
| Colour | transparent |
| Other | high vacuum and peak pressure resistance, configurable as a hose system with digital interface for compatibility with the AMPIUS® app |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Agriculture, Automotive, Plant & Mechanical Engineering, Industry, Semiconductor Industry, Bulk & Construction, Sea & Rail transport, Wood, Chemistry, Food & Pharma, Waste Disposal & Cleaning Technology, Plastics, Conveying, lifting & feeding technology, Textile, Printing & Paper, Vehicle Construction, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 32 | 42.0 | 80.0 | — | 4.85 | 0.94 |
| 38 | 48.0 | 95.0 | — | 4.39 | 0.94 |
| 40 | 50.0 | 100.0 | — | 4.27 | 0.94 |
| 45 | 55.0 | 115.0 | — | 4.1 | 0.94 |
| 51 | 61.0 | 125.0 | — | 4.0 | 0.94 |
| 55 | 65.0 | 140.0 | — | 3.75 | 0.89 |
| 60 | 70.0 | 150.0 | — | 3.6 | 0.89 |
| 65 | 75.0 | 165.0 | — | 3.3 | 0.89 |
| 70 | 80.0 | 175.0 | — | 3.15 | 0.89 |
| 76 | 87.0 | 190.0 | — | 2.92 | 0.89 |
| 80 | 93.0 | 200.0 | — | 2.77 | 0.89 |
| 90 | 103.0 | 225.0 | — | 2.4 | 0.89 |
| 102 | 115.0 | 250.0 | — | 2.1 | 0.87 |
| 110 | 124.0 | 275.0 | — | 1.95 | 0.87 |
| 115 | 129.0 | 290.0 | — | 1.8 | 0.87 |
| 120 | 134.0 | 300.0 | — | 1.65 | 0.87 |
| 127 | 140.0 | 315.0 | — | 1.65 | 0.87 |
| 130 | 143.0 | 325.0 | — | 1.65 | 0.84 |
| 140 | 153.0 | 350.0 | — | 1.5 | 0.83 |
| 152 | 167.0 | 450.0 | — | 1.5 | 0.82 |
| 160 | 175.0 | 500.0 | — | 1.35 | 0.81 |
| 170 | 185.0 | 600.0 | — | 1.2 | 0.8 |
| 175 | 190.0 | 650.0 | — | 1.2 | 0.79 |
| 180 | 195.0 | 700.0 | — | 1.2 | 0.77 |
| 203 | 220.0 | 950.0 | — | 1.05 | 0.66 |
| 225 | 241.0 | 1150.0 | — | 0.9 | 0.58 |
| 250 | 267.0 | 1300.0 | — | 0.9 | 0.51 |
| 275 | 292.0 | 1450.0 | — | 0.75 | 0.47 |
| 300 | 317.0 | 1600.0 | — | 0.6 | 0.42 |
