Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

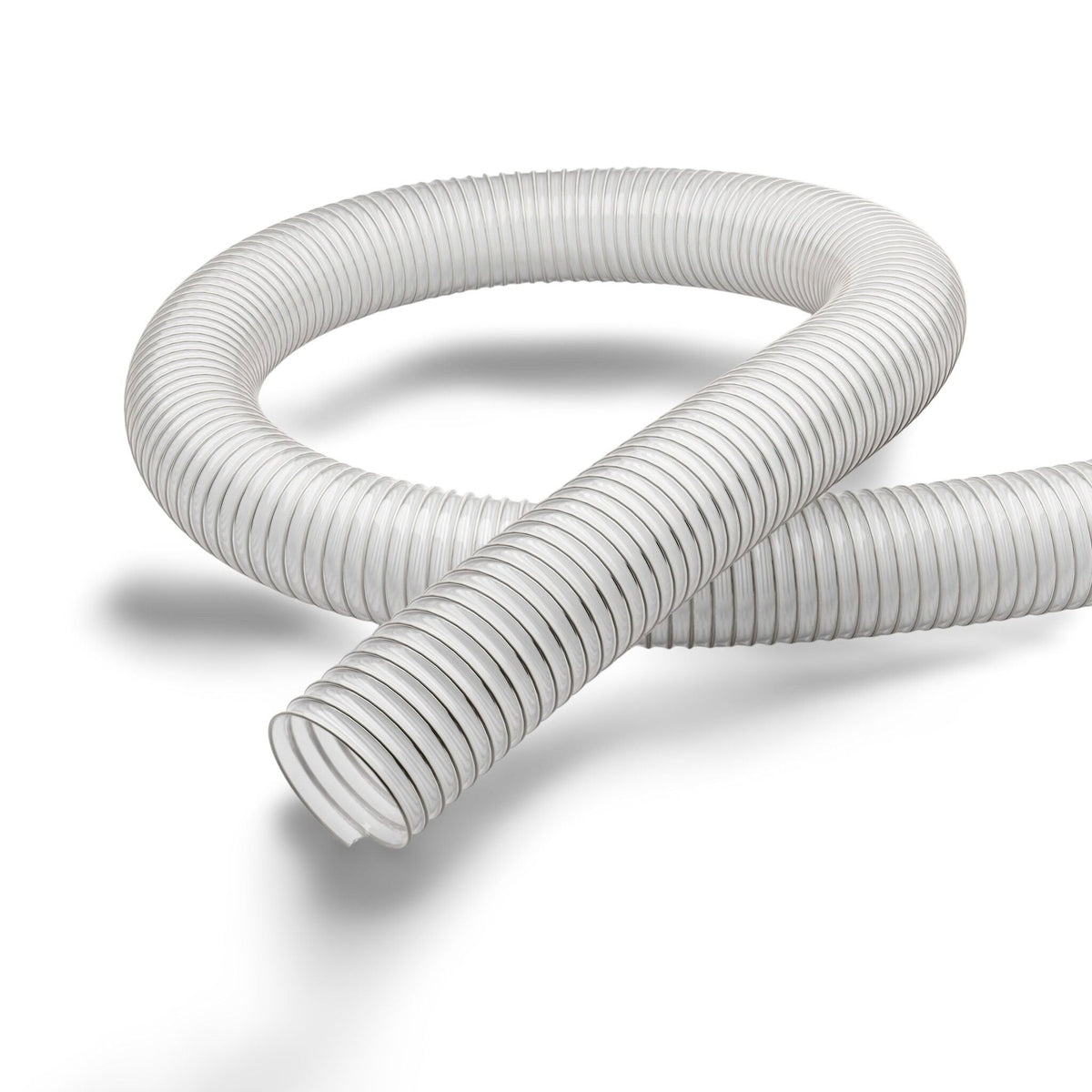

The Master-PUR L Food is a PU suction & transport hose, light duty, food-grade quality acc. to EU 10/2011 and FDA. It is flexible, moderately pressure resistant, with a transparent wall.
Constructed as a profile extruded hose with metal spiral with a polyether polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 32–203 mm, in 10 m, 15 m, 20 m, 25 m lengths.
Food-safe: manufactured to food-grade quality (EU 10/2011) and suitable for direct food contact. Conformity documentation available on request.
✓ Food-safe — manufactured to food-grade quality and suitable for direct food contact. Conformity documentation available on request.
Wall material: approved for direct food contact of categories A, B, C, D1, D2, E, according to EU Directive 1935; 2004, 10; 2011 and its latest amending Directives; material complies with food regulations FDA 21 CFR § 177.2600 - 21 CFR § 178.2010; material complies with food regulations FDA 21 CFR § 178.2010.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | profile extruded hose with metal spiral |
| Spiral Design | made from stainless steel wire |
| Material of the spiral | stainless steel 1.4310, spring steel |
| Execution of the wall | made of pure material, made of specified material, wall thickness between the spirals approx. 0.7 mm |
| Material of the wall | polyether polyurethane |
| Properties | |
| Chemical Properties | microbe-resistant, odourless and tasteless, good UV resistance, halogen-free, good resistance to chemicals, good ozone resistance, hydrolysis resistant, plasticiser-free |
| Flexibility | flexible |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | transparent |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Agriculture, Bulk & Construction, Chemistry, Food & Pharma.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 32 | 40.0 | 40.0 | — | 2.52 | 0.71 |
| 38 | 46.0 | 46.0 | — | 2.1 | 0.66 |
| 40 | 48.0 | 48.0 | — | 2.1 | 0.66 |
| 45 | 53.0 | 53.0 | — | 1.84 | 0.59 |
| 51 | 58.0 | 58.0 | — | 1.68 | 0.52 |
| 55 | 63.0 | 63.0 | — | 1.54 | 0.44 |
| 60 | 68.0 | 68.0 | — | 1.4 | 0.44 |
| 65 | 73.0 | 75.0 | — | 1.26 | 0.37 |
| 70 | 78.0 | 80.0 | — | 1.12 | 0.37 |
| 76 | 84.0 | 85.0 | — | 1.12 | 0.29 |
| 80 | 88.0 | 90.0 | — | 0.98 | 0.29 |
| 90 | 99.0 | 99.0 | — | 0.84 | 0.22 |
| 102 | 110.0 | 110.0 | — | 0.84 | 0.22 |
| 110 | 119.0 | 119.0 | — | 0.7 | 0.22 |
| 115 | 124.0 | 124.0 | — | 0.7 | 0.22 |
| 120 | 129.0 | 130.0 | — | 0.7 | 0.22 |
| 127 | 135.0 | 135.0 | — | 0.7 | 0.22 |
| 130 | 140.0 | 141.0 | — | 0.56 | 0.22 |
| 140 | 150.0 | 153.0 | — | 0.56 | 0.15 |
| 152 | 161.0 | 165.0 | — | 0.56 | 0.15 |
| 160 | 170.0 | 170.0 | — | 0.56 | 0.15 |
| 175 | 185.0 | 185.0 | — | 0.42 | 0.15 |
| 180 | 190.0 | 190.0 | — | 0.42 | 0.15 |
| 203 | 214.0 | 215.0 | — | 0.42 | 0.15 |
