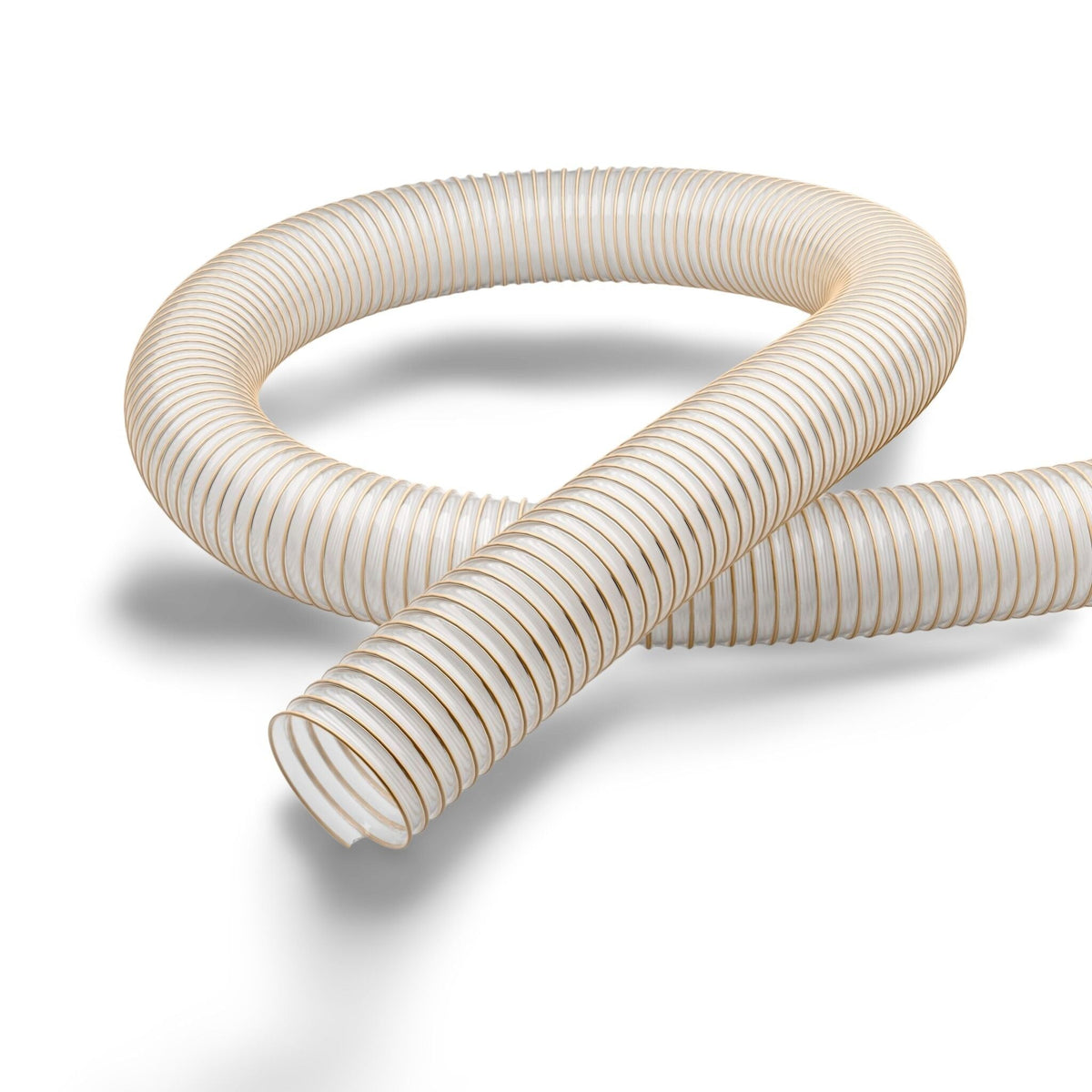

The Master-PUR L Trivolution is a PU suction hose & transport hose, extremely flexible, light duty, antistatic, microbe-resistant. It is moderately pressure resistant, with a transparent wall.
Constructed as a profile extruded hose with metal spiral with a polyester polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 26–500 mm, in 10 m, 15 m, 20 m, 25 m lengths.
Wall material: surface resistance R₀ < 10⁹ Ohm, measured according to DIN EN ISO 8031; material is more abrasion resistant than comparable polyurethane according to DIN ISO 4649; flame retardant according to DIN 4102 B1.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | profile extruded hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of pure material, made of specified material, wall thickness between the spirals approx. 0.7 mm |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical Properties | microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free |
| Flexibility | flexible |
| Physical Properties | permanently antistatic |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | transparent |
| Other | configurable as a hose system with digital interface for compatibility with the AMPIUS® app |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Agriculture, Automotive, Plant & Mechanical Engineering, Robotics & Automation, Industry, Semiconductor Industry, aviation technology, Ventilation & Air-conditioning, Energy Technology, Bulk & Construction, Sea & Rail transport, Wood, Chemistry, Food & Pharma, Waste Disposal & Cleaning Technology, Plastics, Conveying, lifting & feeding technology, Cable manufacturers, Textile, Printing & Paper, Vehicle Construction, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 26 | 31.0 | 31.0 | — | 3.22 | 0.79 |
| 32 | 40.0 | 40.0 | — | 2.52 | 0.71 |
| 38 | 46.0 | 46.0 | — | 2.1 | 0.66 |
| 40 | 48.0 | 48.0 | — | 2.1 | 0.66 |
| 45 | 53.0 | 53.0 | — | 1.84 | 0.59 |
| 51 | 58.0 | 58.0 | — | 1.68 | 0.52 |
| 55 | 63.0 | 63.0 | — | 1.54 | 0.44 |
| 60 | 68.0 | 68.0 | — | 1.4 | 0.44 |
| 65 | 73.0 | 73.0 | — | 1.26 | 0.37 |
| 70 | 78.0 | 78.0 | — | 1.12 | 0.37 |
| 76 | 84.0 | 84.0 | — | 1.12 | 0.29 |
| 80 | 88.0 | 88.0 | — | 0.98 | 0.29 |
| 90 | 99.0 | 99.0 | — | 0.84 | 0.22 |
| 102 | 110.0 | 110.0 | — | 0.84 | 0.22 |
| 110 | 119.0 | 119.0 | — | 0.7 | 0.22 |
| 115 | 124.0 | 124.0 | — | 0.7 | 0.22 |
| 120 | 129.0 | 129.0 | — | 0.7 | 0.22 |
| 127 | 135.0 | 135.0 | — | 0.7 | 0.22 |
| 130 | 139.0 | 139.0 | — | 0.56 | 0.22 |
| 140 | 149.0 | 149.0 | — | 0.56 | 0.15 |
| 152 | 161.0 | 161.0 | — | 0.56 | 0.15 |
| 160 | 170.0 | 170.0 | — | 0.56 | 0.15 |
| 170 | 180.0 | 180.0 | — | 0.42 | 0.15 |
| 175 | 185.0 | 185.0 | — | 0.42 | 0.15 |
| 180 | 190.0 | 190.0 | — | 0.42 | 0.15 |
| 203 | 214.0 | 214.0 | — | 0.42 | 0.15 |
| 225 | 235.0 | 235.0 | — | 0.28 | 0.07 |
| 250 | 260.0 | 260.0 | — | 0.28 | 0.07 |
| 275 | 284.0 | 284.0 | — | 0.28 | 0.07 |
| 280 | 290.0 | 290.0 | — | 0.28 | 0.07 |
| 300 | 310.0 | 310.0 | — | 0.25 | 0.07 |
| 315 | 325.0 | 325.0 | — | 0.25 | 0.07 |
| 325 | 335.0 | 335.0 | — | 0.25 | 0.07 |
| 350 | 360.0 | 360.0 | — | 0.13 | 0.07 |
| 375 | 386.0 | 386.0 | — | 0.13 | 0.05 |
| 400 | 411.0 | 410.0 | — | 0.13 | 0.05 |
| 450 | 461.0 | 460.0 | — | 0.13 | 0.05 |
| 500 | 511.0 | 510.0 | — | 0.13 | 0.05 |
