Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

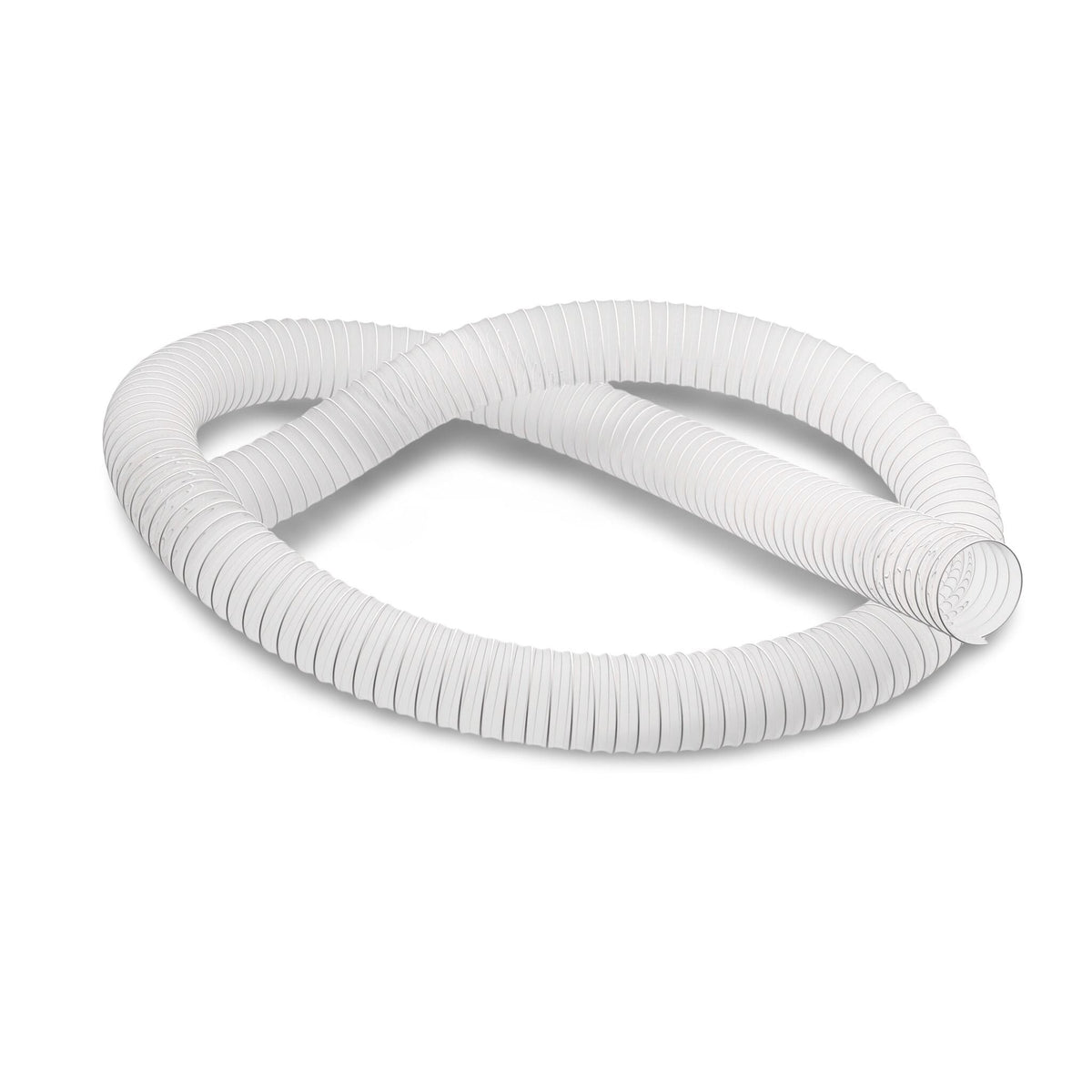

The Master PUR LF Food is a food-grade PU film hose with an embedded support coil, suitable for direct food contact (FDA).
Constructed as a film hose with embedded support coil with a polyether polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 40–400 mm, in 10 m, 15 m lengths.
Food-safe: manufactured to food-grade quality (FDA) and suitable for direct food contact. Conformity documentation available on request.
✓ Food-safe — manufactured to food-grade quality and suitable for direct food contact. Conformity documentation available on request.
| Construction & material | |
|---|---|
| Type of construction | film hose with embedded support coil |
| Spiral Design | made from stainless steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of pure material, wall thickness between the spirals approx. 0.5 mm |
| Material of the wall | polyether polyurethane |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 40 | 46.0 | 20.0 | — | 0.82 | 0.24 |
| 51 | 57.0 | 25.0 | — | 0.78 | 0.2 |
| 60 | 68.0 | 35.0 | — | 0.76 | 0.19 |
| 65 | 68.0 | 35.0 | — | 0.76 | 0.19 |
| 70 | 78.0 | 40.0 | — | 0.61 | 0.16 |
| 76 | 83.0 | 43.0 | — | 0.61 | 0.13 |
| 80 | 88.0 | 45.0 | — | 0.53 | 0.13 |
| 90 | 99.0 | 50.0 | — | 0.46 | 0.09 |
| 102 | 108.0 | 55.0 | — | 0.46 | 0.09 |
| 110 | 119.0 | 60.0 | — | 0.38 | 0.09 |
| 115 | 119.0 | 60.0 | — | 0.38 | 0.09 |
| 120 | 129.0 | 65.0 | — | 0.38 | 0.09 |
| 127 | 134.0 | 70.0 | — | 0.38 | 0.09 |
| 152 | 159.0 | 80.0 | — | 0.3 | 0.06 |
| 160 | 169.0 | 85.0 | — | 0.3 | 0.06 |
| 180 | 189.0 | 95.0 | — | 0.23 | 0.06 |
| 203 | 210.0 | 105.0 | — | 0.23 | 0.06 |
| 254 | 260.0 | 130.0 | — | 0.15 | 0.03 |
| 300 | 310.0 | 155.0 | — | 0.14 | 0.03 |
| 315 | 325.0 | 162.0 | — | 0.14 | 0.03 |
| 350 | 360.0 | 180.0 | — | 0.12 | 0.03 |
| 400 | 410.0 | 210.0 | — | 0.12 | 0.03 |
