Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

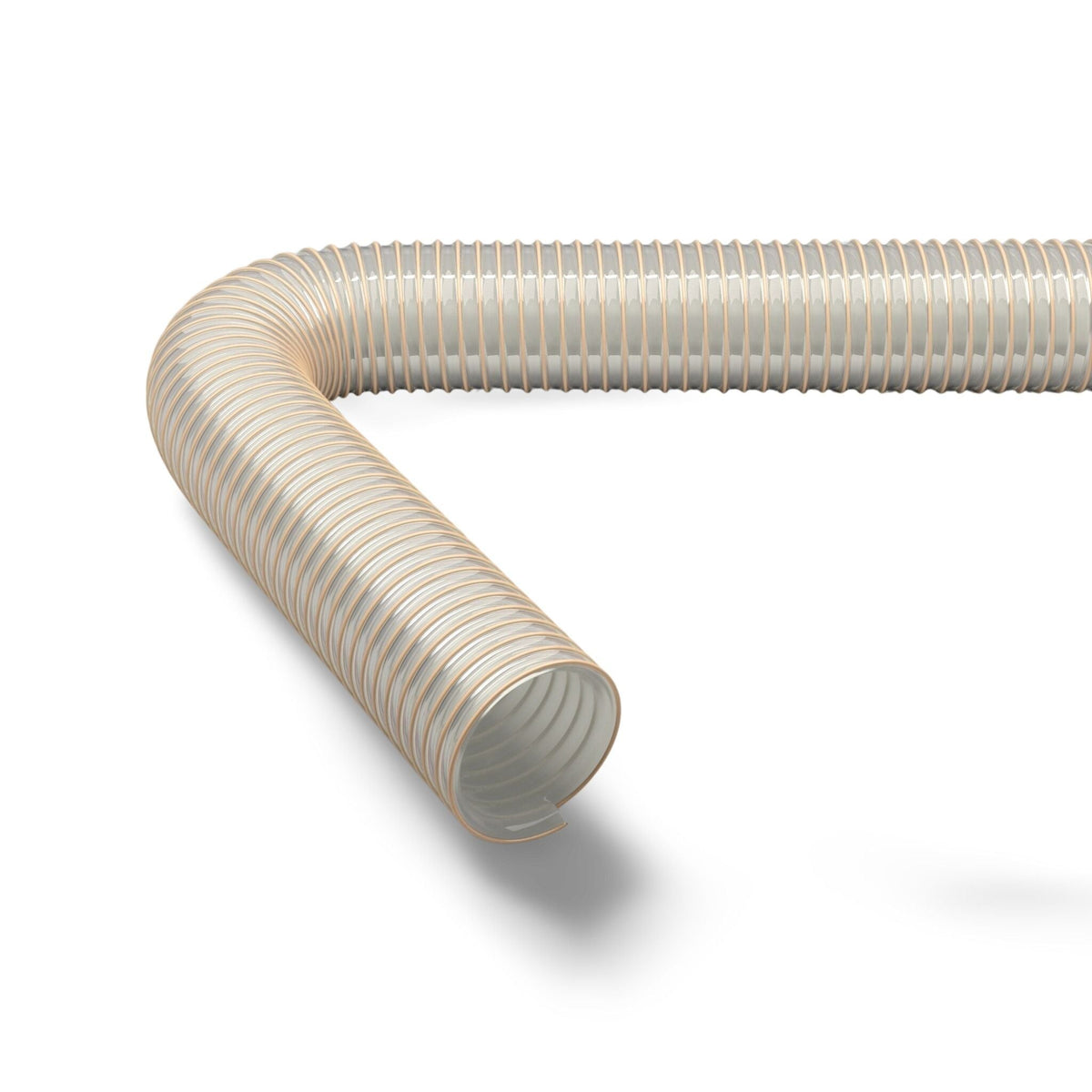

The Master-PUR Performance is a PU suction hose & transport hose, extremely abrasion-resistant & vacuum-proof, seamless smooth. It is moderately flexible and heavy in weight, very pressure resistant, with a colour of the interior wall wall.
Constructed as a profile extruded hose with metal spiral with a polyether polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 38–200 mm, in 10 m, 15 m, 20 m lengths.
Wall material: surface resistance R₀ < 10⁹ Ohm, measured according to DIN EN ISO 8031.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | profile extruded hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of highly abrasion-resistant material, made of pure material, made of specified material, addition of a non-migrating permanent antistatic agent, wall thickness approx. 2.5 mm |
| Material of the inner layer | polyether polyurethane |
| Material of the outer layer | polyester polyurethane |
| Properties | |
| Chemical Properties | microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free |
| Flexibility | moderately flexible |
| Physical Properties | permanently antistatic |
| Weight | heavy |
| Pressure Resistance | very pressure resistant |
| Colour | colour of the interior wall |
| Other | high vacuum and good pressure resistance, particularly smooth on the inside, configurable as a hose system with digital interface for compatibility with the AMPIUS® app |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Agriculture, Automotive, Plant & Mechanical Engineering, Industry, Semiconductor Industry, Ventilation & Air-conditioning, Bulk & Construction, Chemistry, Food & Pharma, Waste Disposal & Cleaning Technology, Plastics, Conveying, lifting & feeding technology, Textile, Printing & Paper, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 38 | 50.0 | 130.0 | — | 4.35 | 0.94 |
| 40 | 52.0 | 135.0 | — | 4.25 | 0.94 |
| 45 | 57.0 | 155.0 | — | 4.12 | 0.94 |
| 51 | 66.0 | 170.0 | — | 4.0 | 0.94 |
| 55 | 72.0 | 175.0 | — | 3.8 | 0.94 |
| 60 | 77.0 | 185.0 | — | 3.7 | 0.94 |
| 65 | 82.0 | 190.0 | — | 3.5 | 0.94 |
| 76 | 93.0 | 250.0 | — | 3.15 | 0.94 |
| 80 | 97.0 | 270.0 | — | 2.9 | 0.94 |
| 90 | 107.0 | 285.0 | — | 2.7 | 0.94 |
| 102 | 119.0 | 300.0 | — | 2.5 | 0.94 |
| 115 | 132.0 | 325.0 | — | 2.3 | 0.94 |
| 127 | 144.0 | 350.0 | — | 2.0 | 0.94 |
| 152 | 169.0 | 400.0 | — | 1.5 | 0.94 |
| 175 | 190.0 | 770.0 | — | 1.1 | 0.7 |
| 180 | 195.0 | 780.0 | — | 1.0 | 0.68 |
| 200 | 215.0 | 840.0 | — | 0.8 | 0.55 |
