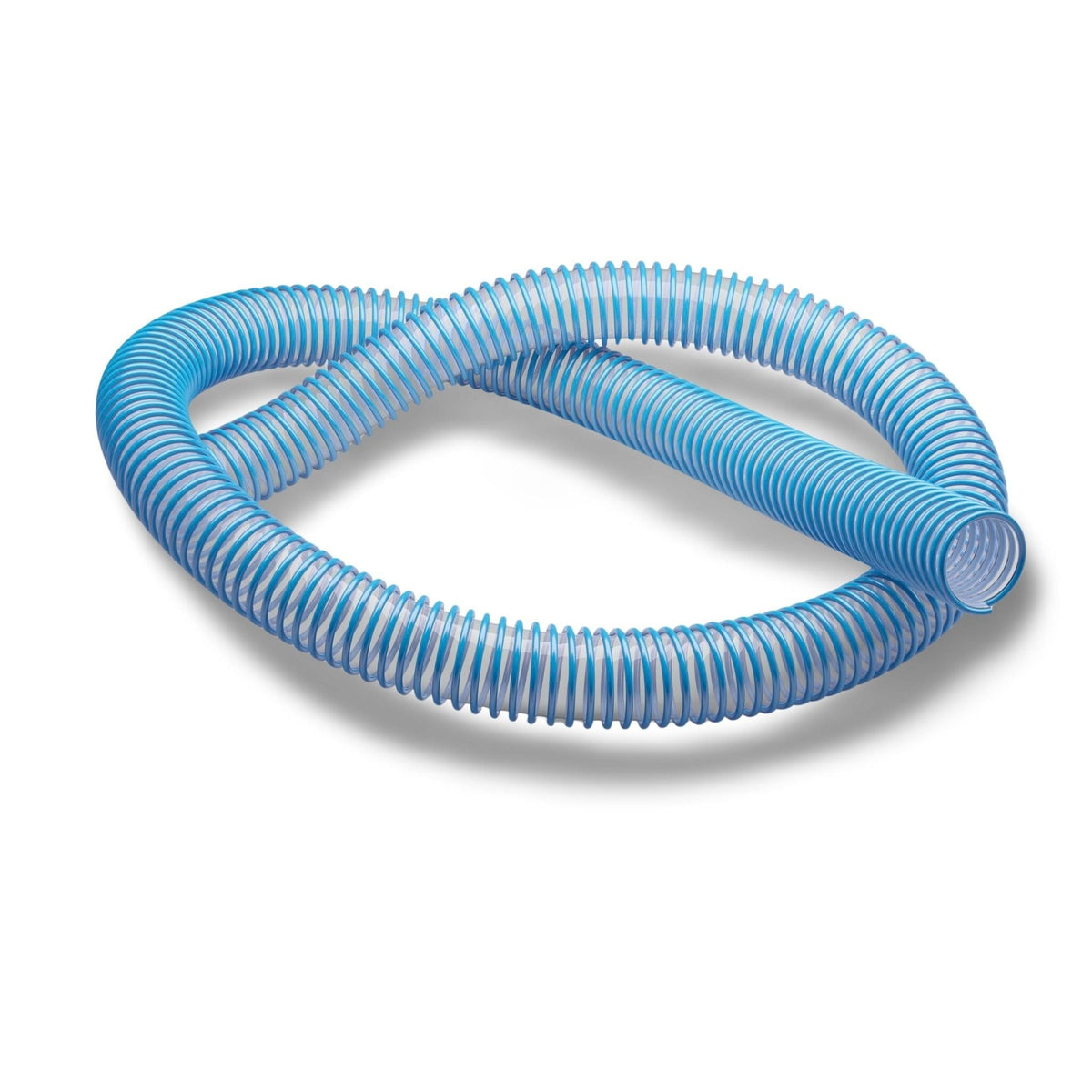

The Master-PUR STEP is a PU film hose, crush-resistant, hardly inflammable acc. to DIN 4102 b1. It is very flexible and light in weight, moderately pressure resistant, with a tubing wall transparent with blue spiral wall.
Constructed as a film hose with attached support coil with a polyester polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 51–160 mm, in 10 m, 15 m lengths.
Wall material: material is more abrasion resistant than comparable polyurethane according to DIN ISO 4649; flame retardant according to DIN 4102 B1.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | film hose with attached support coil |
| Material of the helix | polyurethane |
| Execution of the wall | made of pure material, made of specified material, addition of flame retardant additives, wall thickness between the spirals approx. 0.5 mm |
| Material of the wall | polyester polyurethane |
| Design of the profile coil | made of plastic |
| Design of the stranded wire | made of metal |
| Properties | |
| Chemical Properties | good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol |
| Flexibility | very flexible |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | tubing wall transparent with blue spiral |
| Other | good recovery properties |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Plant & Mechanical Engineering, Industry, aviation technology, Ventilation & Airconditioning, Sea & Rail transport, Wood, Plastics, Conveying, lifting & feeding technology, Textile, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 51 | 68.0 | 50.0 | — | 0.78 | 0.2 |
| 60 | 80.0 | 65.0 | — | 0.76 | 0.19 |
| 76 | 95.0 | 75.0 | — | 0.61 | 0.13 |
| 80 | 100.0 | 80.0 | — | 0.53 | 0.13 |
| 102 | 120.0 | 100.0 | — | 0.46 | 0.09 |
| 120 | 140.0 | 120.0 | — | 0.38 | 0.09 |
| 127 | — | — | — | — | — |
| 140 | 160.0 | 140.0 | — | 0.3 | 0.06 |
| 152 | 170.0 | 150.0 | — | 0.3 | 0.06 |
| 160 | 180.0 | 160.0 | — | 0.3 | 0.06 |
