Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

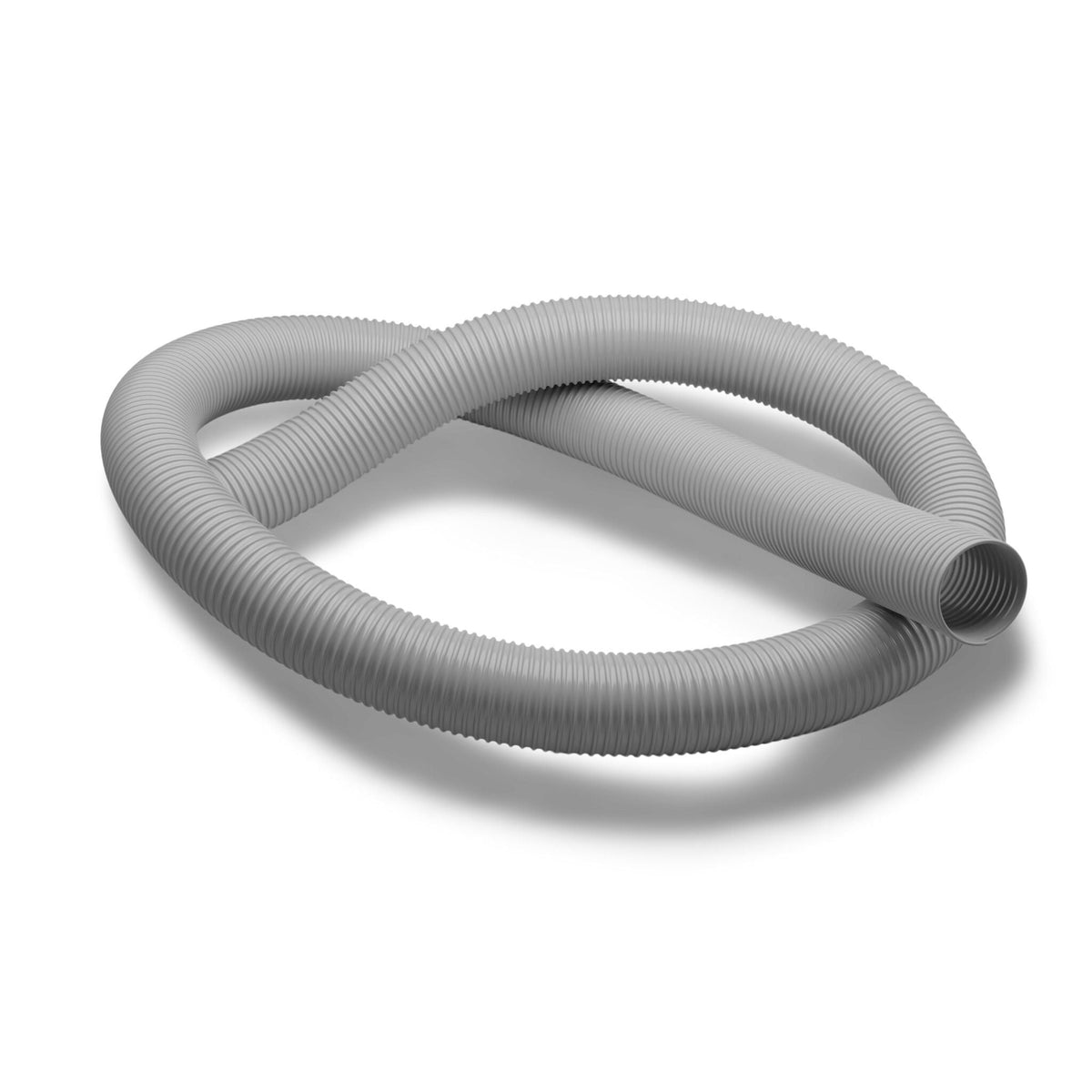

The Master PVC LF M is a medium duty flexible PVC hose and ducting manufactured from soft grey PVC, reinforced with. It is moderately pressure resistant.
Constructed as a film hose with embedded support coil with a soft pvc wall, it operates from 0 °C to +70 °C (peaks to 85 °C). Available in bore sizes from 25–203 mm, in 10 m lengths.
Wall material: flame retardant.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | film hose with embedded support coil |
| Spiral Design | plastic coated |
| Material of the spiral | spring steel |
| Material of the wall | soft PVC |
| Properties | |
| Mechanical Properties | small bending radius |
| Flexibility | very flexible |
| Pressure Resistance | moderately pressure resistant |
| Colour | grey |
| Operating temperature | |
| Temperature Range | 0 to 70 °C |
| short-term maximum temperature | peaks to 85 °C |
Automotive, Wood.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 25 | 31.0 | 14.0 | — | 1.7 | 0.2 |
| 32 | 38.0 | 18.0 | — | 1.5 | 0.2 |
| 38 | 44.0 | 22.0 | — | 1.4 | 0.2 |
| 45 | 51.0 | 25.0 | — | 1.3 | 0.18 |
| 51 | 57.0 | 28.0 | — | 1.3 | 0.15 |
| 55 | 63.0 | 30.0 | — | 1.2 | 0.14 |
| 57 | 63.0 | 30.0 | — | 1.2 | 0.14 |
| 63 | 69.0 | 34.0 | — | 1.0 | 0.14 |
| 76 | 82.0 | 40.0 | — | 0.8 | 0.1 |
| 80 | 86.0 | 42.0 | — | 0.7 | 0.09 |
| 89 | 95.0 | 48.0 | — | 0.7 | 0.09 |
| 102 | 108.0 | 52.0 | — | 0.6 | 0.08 |
| 115 | 121.0 | 60.0 | — | 0.5 | 0.07 |
| 127 | 133.0 | 66.0 | — | 0.4 | 0.06 |
| 152 | 158.0 | 80.0 | — | 0.3 | 0.05 |
| 203 | — | — | — | — | — |
