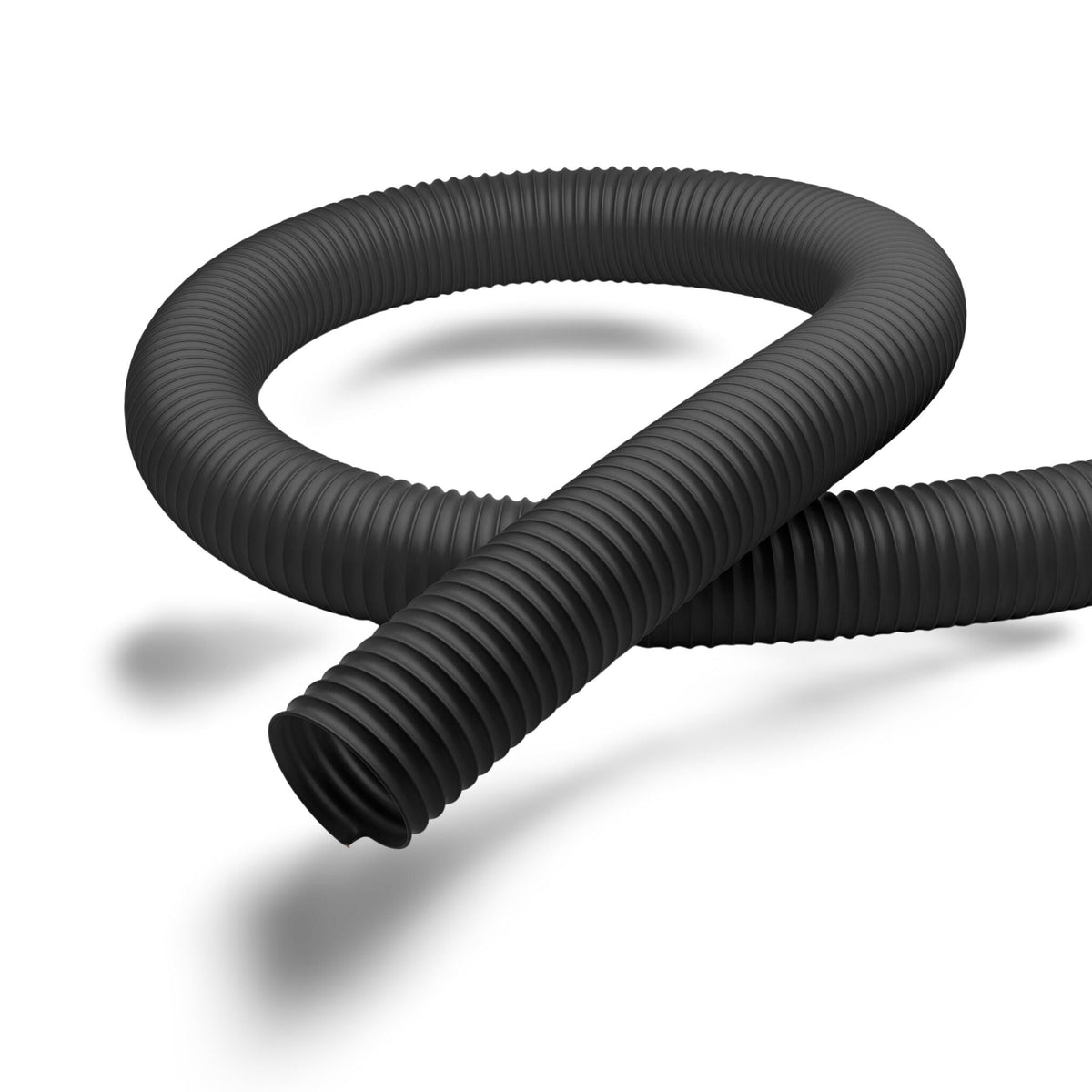

The Master-Santo LF is a flexible Santoprene™ (TPV) hose for liquids and gaseous media. It is moderately pressure resistant.
Constructed as a film hose with metal spiral with a thermoplastic vulcanizate (TPV) wall, it operates from -40 °C to +130 °C (peaks to 125 °C). Available in bore sizes from 26–304 mm, in 10 m lengths.
| Construction & material | |
|---|---|
| Type of construction | film hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Material of the wall | thermoplastic vulcanizate (TPV) |
| Properties | |
| Flexibility | very flexible |
| Physical Properties | heat-resistant |
| Pressure Resistance | moderately pressure resistant |
| Operating temperature | |
| Temperature Range | -40 to 130 °C |
| short-term maximum temperature | peaks to 125 °C |
Automotive.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 26 | 31.0 | 25.0 | — | 1.7 | 0.4 |
| 32 | 38.0 | 32.0 | — | 1.5 | 0.35 |
| 38 | 44.0 | 38.0 | — | 1.4 | 0.3 |
| 44 | 50.0 | 44.0 | — | 1.3 | 0.28 |
| 50 | 57.0 | 51.0 | — | 1.3 | 0.28 |
| 57 | — | — | — | — | — |
| 60 | 69.0 | 63.0 | — | 1.0 | 0.25 |
| 63 | 69.0 | 63.0 | — | 1.0 | 0.25 |
| 70 | 69.0 | 63.0 | — | 1.0 | 0.25 |
| 76 | 82.0 | 76.0 | — | 0.8 | 0.2 |
| 80 | 86.0 | 80.0 | — | 0.7 | 0.18 |
| 90 | — | — | — | — | — |
| 102 | 111.0 | 102.0 | — | 0.6 | 0.18 |
| 110 | — | — | — | — | — |
| 115 | — | — | — | — | — |
| 120 | 132.0 | 127.0 | — | 0.6 | 0.12 |
| 127 | 132.0 | 127.0 | — | 0.6 | 0.12 |
| 130 | 132.0 | 127.0 | — | 0.6 | 0.12 |
| 140 | — | — | — | — | — |
| 152 | 157.0 | 152.0 | — | 0.5 | 0.11 |
| 160 | — | — | — | — | — |
| 180 | — | — | — | — | — |
| 203 | 210.0 | 203.0 | — | 0.4 | 0.1 |
| 227 | — | — | — | — | — |
| 254 | 262.0 | 254.0 | — | 0.4 | 0.1 |
| 304 | 312.0 | 304.0 | — | 0.3 | 0.1 |
