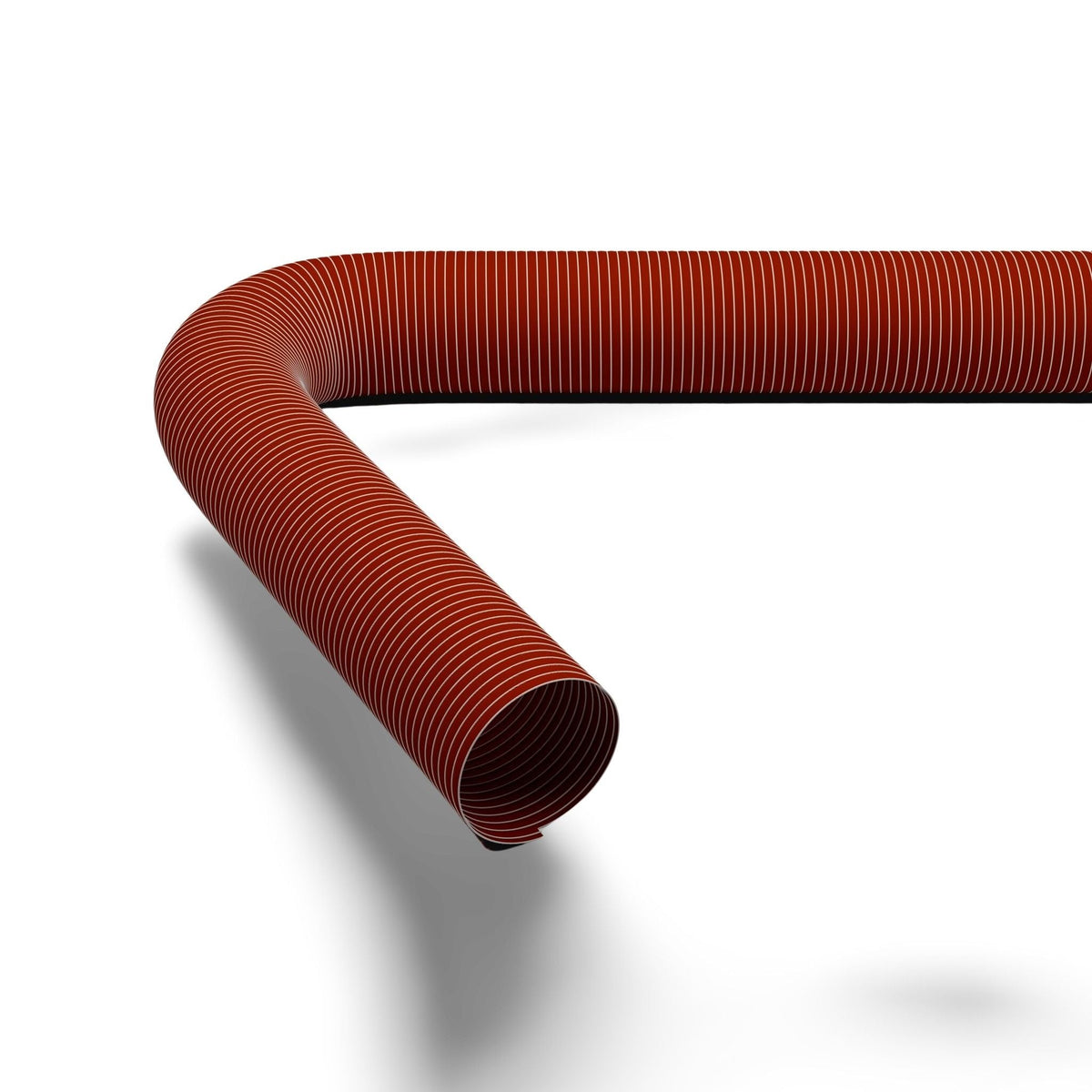

The Master-SIL 1 is a medium and high temperature hose for temperatures up to +250 °c. It is very flexible and light in weight, moderately pressure resistant, with a red wall.
Constructed as a single or multi-layer spiral hose made of vulcanized fabric strips with a glass fibre fabric wall, it operates from -60 °C to +250 °C (+70 °C bis +300 °C). Available in bore sizes from 13–305 mm, in 4 m lengths.
| Construction & material | |
|---|---|
| Type of construction | single or multi-layer spiral hose made of vulcanized fabric strips |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | single layer executed, coating in silicone |
| Material of the wall | glass fibre fabric |
| Design of the cord | designed as cord |
| Material of the cord | glass fibre yarn |
| Properties | |
| Chemical Properties | good resistance to chemicals |
| Mechanical Properties | kink-proof |
| Flexibility | very flexible |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | red |
| Operating temperature | |
| Temperature Range | -60 to 250 °C |
| short-term maximum temperature | +70 °C bis +300 °C |
| proper use | in the maximum lower and upper temperature ranges, suitable only for static applications |
Plant & Mechanical Engineering, aviation technology, Ventilation & Air-conditioning, Bulk & Construction, Sea & Rail transport, Chemistry, Plastics, Printing & Paper, Vehicle Construction.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 13 | — | 8.0 | — | 1.7 | 0.51 |
| 19 | — | 8.0 | — | 1.6 | 0.5 |
| 26 | — | 8.0 | — | 1.6 | 0.5 |
| 30 | — | 10.0 | — | 1.4 | 0.49 |
| 32 | — | 10.0 | — | 1.4 | 0.49 |
| 38 | — | 12.0 | — | 1.3 | 0.49 |
| 41 | — | 13.0 | — | 1.3 | 0.47 |
| 42 | — | 13.0 | — | 1.3 | 0.47 |
| 44 | — | 14.0 | — | 1.2 | 0.45 |
| 45 | — | 14.0 | — | 1.2 | 0.45 |
| 51 | — | 16.0 | — | 1.2 | 0.42 |
| 55 | — | 18.0 | — | 1.1 | 0.41 |
| 57 | — | 18.0 | — | 1.1 | 0.4 |
| 60 | — | 20.0 | — | 1.1 | 0.39 |
| 63 | — | 22.0 | — | 1.1 | 0.38 |
| 64 | — | 22.0 | — | 1.1 | 0.38 |
| 65 | — | 22.0 | — | 1.1 | 0.37 |
| 70 | — | 24.0 | — | 1.1 | 0.35 |
| 76 | — | 27.0 | — | 1.1 | 0.33 |
| 80 | — | 28.0 | — | 1.0 | 0.31 |
| 83 | — | 28.0 | — | 1.0 | 0.3 |
| 90 | — | 29.0 | — | 1.0 | 0.29 |
| 95 | — | 32.0 | — | 0.9 | 0.28 |
| 102 | — | 35.0 | — | 0.9 | 0.26 |
| 108 | — | 38.0 | — | 0.9 | 0.24 |
| 110 | — | 38.0 | — | 0.9 | 0.24 |
| 114 | — | 40.0 | — | 0.9 | 0.22 |
| 120 | — | 43.0 | — | 0.8 | 0.2 |
| 127 | — | 46.0 | — | 0.8 | 0.17 |
| 130 | — | 47.0 | — | 0.8 | 0.17 |
| 140 | — | 48.0 | — | 0.7 | 0.15 |
| 152 | — | 51.0 | — | 0.7 | 0.14 |
| 160 | — | 53.0 | — | 0.6 | 0.13 |
| 165 | — | 55.0 | — | 0.6 | 0.12 |
| 180 | — | 60.0 | — | 0.6 | 0.11 |
| 203 | — | 68.0 | — | 0.5 | 0.07 |
| 229 | — | 84.0 | — | 0.4 | 0.06 |
| 254 | — | 102.0 | — | 0.4 | 0.04 |
| 305 | — | 123.0 | — | 0.2 | 0.02 |
