Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

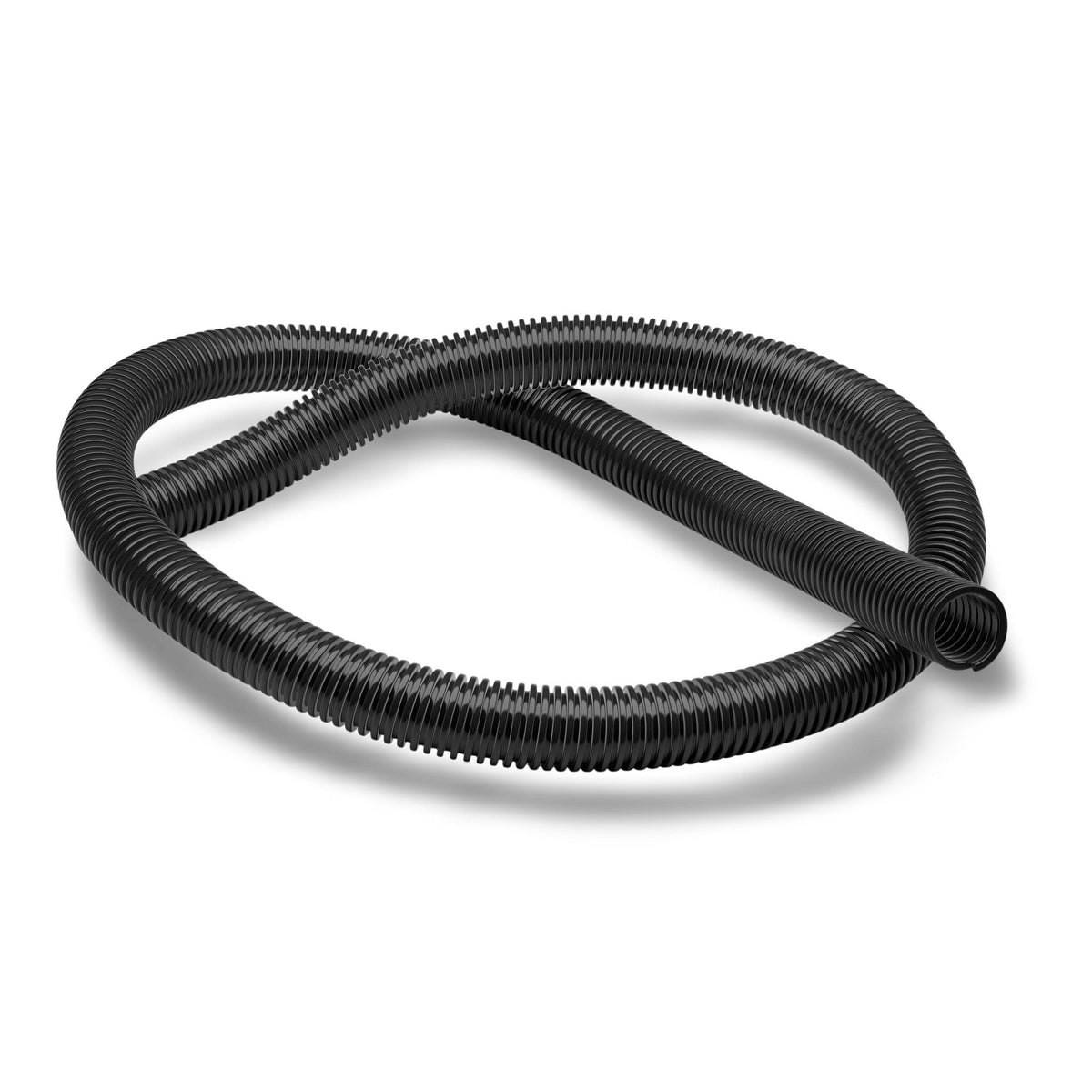

The Master-VAC EL is a PE-EVA suction hose & transport hose, lightweight, crush-resistant, electroconductive. It is moderately flexible, moderately pressure resistant, with a black wall.
Constructed as a extruded spiral hose with a pe-eva co-polymer wall, it operates from -40 °C to +60 °C (peaks to 70 °C). Available in bore sizes from 25–50 mm, in 15 m, 20 m lengths.
Wall material: surface resistance R₀ < 10⁶ Ohm.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | extruded spiral hose |
| Execution of the wall | made of specified material |
| Material of the wall | PE-EVA Co-polymer |
| Properties | |
| Chemical Properties | good resistance to oil, good ozone resistance, good resistance to alkaline solutions, good resistance to acids, good UV resistance |
| Flexibility | moderately flexible |
| Physical Properties | airtight, watertight, buoyant (spec. weight 0.94) |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | black |
| Operating temperature | |
| Temperature Range | -40 to 60 °C |
| short-term maximum temperature | peaks to 70 °C |
Wood, Waste Disposal & Cleaning Technology.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 25 | — | 60.0 | — | — | 0.74 |
| 32 | — | 70.0 | — | — | 0.49 |
| 38 | — | 80.0 | — | — | 0.49 |
| 50 | — | 100.0 | — | — | 0.39 |
