Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

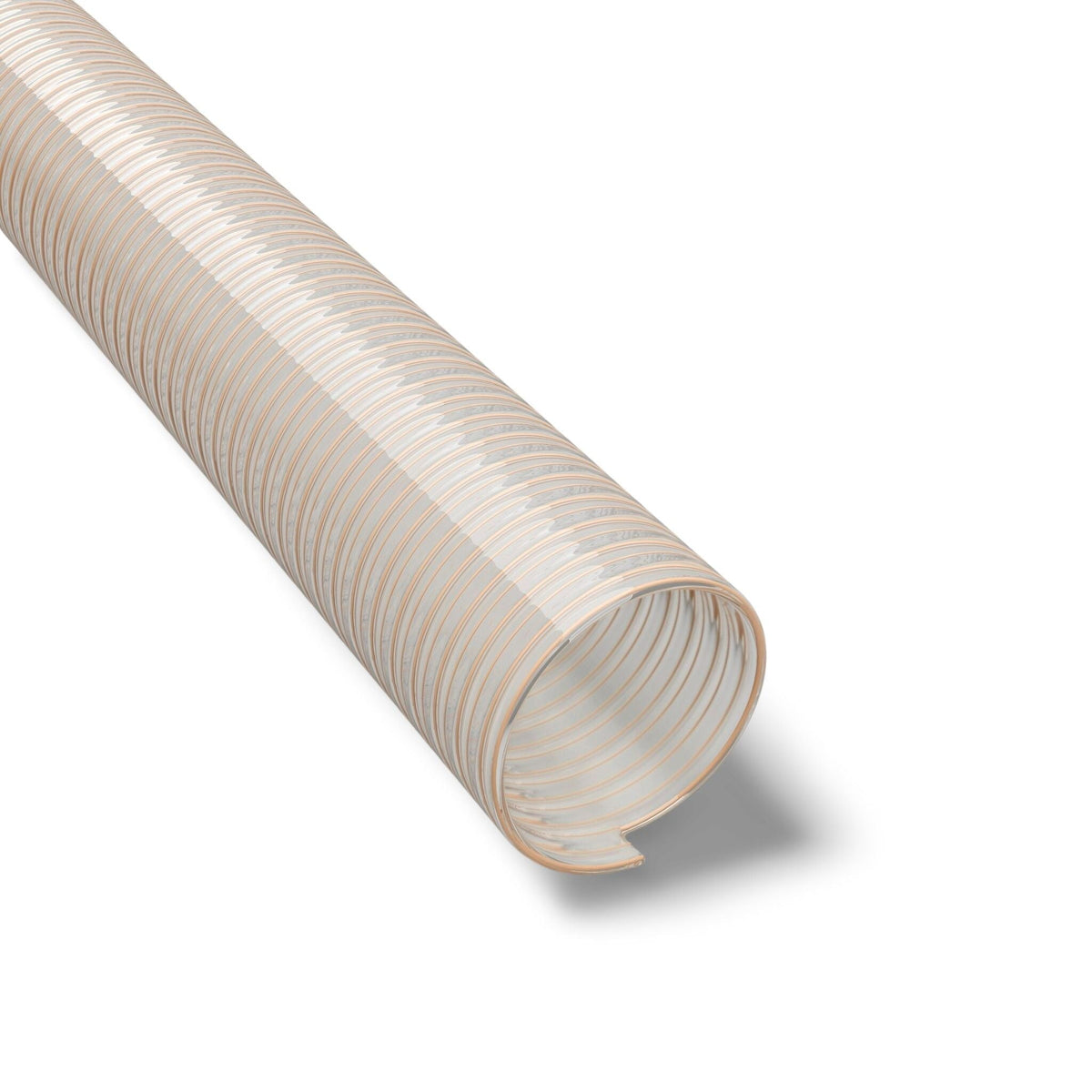

The Polderflex PUR is a PU suction & transport hose, extremely pressure and vacuum resistant, with smooth inner and outer walls. It is moderately flexible and heavy in weight, with a transparent wall.
Constructed as a profile extruded hose with metal spiral with a polyester polyurethane wall, it operates from -40 °C to +90 °C (peaks to 125 °C). Available in bore sizes from 32–76 mm, in 10 m lengths.
Wall material: material is more abrasion resistant than comparable polyurethane according to DIN ISO 4649.
Note: ATEX / explosion-zone suitability must always be assessed for your specific installation by the operator.
| Construction & material | |
|---|---|
| Type of construction | profile extruded hose with metal spiral |
| Spiral Design | made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | made of pure material, made of specified material, wall thickness 3 - 5 mm, depending on DN |
| Material of the wall | polyester polyurethane |
| Properties | |
| Chemical Properties | halogen-free, good resistance to chemicals, good UV resistance, good resistance to petrol, good resistance to oil, good ozone resistance, plasticiser-free |
| Mechanical Properties | excellent mechanical tensile strength and tear resistance |
| Flexibility | moderately flexible |
| Weight | heavy |
| Pressure Resistance | very pressure resistant |
| Colour | transparent |
| Other | high vacuum and good pressure resistance, largely smooth inside, smooth on the outside, longer service life |
| Operating temperature | |
| Temperature Range | -40 to 90 °C |
| short-term maximum temperature | peaks to 125 °C |
Industry, Bulk & Construction, Chemistry, Food & Pharma, Plastics, Printing & Paper, Metal & Toolmaking.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 32 | 41.5 | 160.0 | — | 5.75 | 0.93 |
| 38 | 47.5 | 190.0 | — | 5.63 | 0.93 |
| 40 | 49.5 | 200.0 | — | 5.5 | 0.93 |
| 45 | 54.5 | 225.0 | — | 5.38 | 0.93 |
| 51 | 62.5 | 250.0 | — | 5.25 | 0.93 |
| 60 | 71.5 | 300.0 | — | 5.13 | 0.93 |
| 76 | 87.5 | 380.0 | — | 5.0 | 0.93 |
