Seal your hose properly — sized automatically to match the bore you selected. We’ve added 2 — one for each end of the hose. Adjust if you need more or fewer.

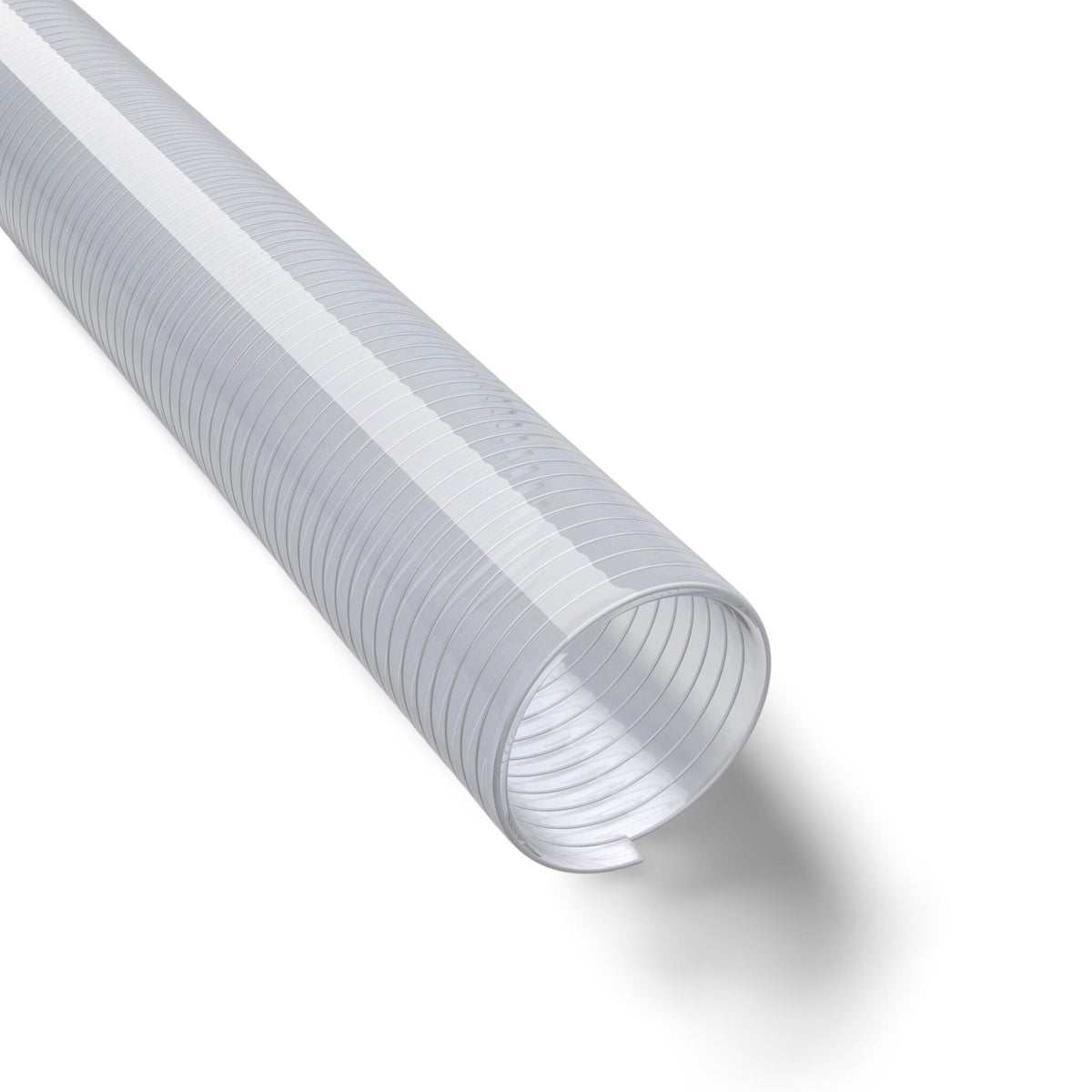

The Polderflex PVC is a flexible industrial suction & delivery hose.
It is supplied to the specification shown on the datasheet. Available in bore sizes from 13–75 mm, in 30 m lengths.
← swipe to see all columns →
| Bore DN (mm) | Outer Ø (mm) | Bend radius (mm) | Wall (mm) | Op. pressure (bar) | Vacuum (bar) |
|---|---|---|---|---|---|
| 13 | 19.0 | 26.0 | — | 9.0 | 0.88 |
| 16 | 22.0 | 32.0 | — | 9.0 | 0.88 |
| 20 | 27.0 | 40.0 | — | 8.0 | 0.88 |
| 25 | 33.0 | 50.0 | — | 8.0 | 0.88 |
| 32 | 40.0 | 64.0 | — | 8.0 | 0.88 |
| 38 | 47.0 | 76.0 | — | 7.0 | 0.88 |
| 40 | 50.0 | 80.0 | — | 7.0 | 0.88 |
| 45 | 55.0 | 90.0 | — | 6.0 | 0.88 |
| 50 | 62.0 | 102.0 | — | 5.0 | 0.88 |
| 60 | 72.0 | 120.0 | — | 5.0 | 0.88 |
| 63 | 75.0 | 126.0 | — | 5.0 | 0.88 |
| 75 | 89.0 | 152.0 | — | 4.0 | 0.88 |
